XML API Interface Technical Document

This document is released as legacy documentation and is no longer updated.

Introduction

Using the Outpost24 XML API will allow your company or third parties to integrate the OUTSCAN or HIAB solution into your own applications using an extensible XML interface. This guide is intended for those who are going to use the Outpost24 XML API. Read the Getting Started section before you start developing your application.

Getting Started

This manual provides the technical guidance required to integrate to the Outpost24 platform using a proprietary, XML-based interface. This interface is designed to provide clients with a straightforward way of how to create a connection to Outpost24. It is easy to integrate into applications and requires skills and knowledge that are familiar to most web developers.

The Outpost24 XML API features a rich set of functions, which will allow you to customize the output and request different types of information from within the system. As you can see in the illustration below, all the things that you can do from the graphical user interface can be performed from the XML API.

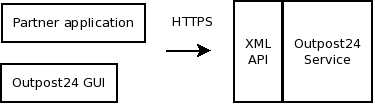

Processing API Requests:

The server will allow you to do either GET or POST request but if you have a request which might transfer a larger amount of data in the parameters then it's wise to use the POST request instead since that is capable of handling larger requests.

The default date and time format used by the system is yyyy-MM-dd HH:mm (Java formatting style). The time format is 24 hours so the following is an example, which refers to last day of the year right before midnight: 2012-12-31 23:59

The time zone used in the system is GMT. If you need it in another time zone you need to convert it by yourself.

The character encoding used by the system is UTF-8.

All URI parameters that are used when requesting information are case sensitive.

Basic Information

The request for the API is done against either the OUTSCAN system or the HIAB appliance/instance.

If done against the against the OUTSCAN system the URI is the following:

CODE

https://outscan.outpost24.com/opi/XMLAPI

On the HIAB the XML API is located at the following URI:

CODE

https://hiab-ip/opi/XMLAPI

When connecting to the API you should use something that is referred to as an application token called APPTOKEN. This makes it possible for you to perform a single request with a predefined users access right.

Note that the token generated should be carefully protected since it will allow direct access with out the requirement of authentication. Should you test the request in a browser, regenerate the token afterwards when the solution is put into production since the old version has been stored in the browser history.

The token can be generated under Main Menu > Settings > Account > Security Policy. In the bottom of that screen you will have a selection called Application Access Token and this is the one that will provide you access to the API without performing multiple requests.

Once the token is generated, add it to any request that you would like to perform using the parameter APPTOKEN.

For example:

CODE

https://hiab-ip/opi/XMLAPI?ACTION=SCANLOG&APPTOKEN=xxxx

Read the Appendix A to see how the responses are encapsulated in XML.

Country Codes

A complete and up to date list of supported country codes by system can be retrieved from the system. Whenever the country field is given to the system it will be validated against these values. See Appendix E.

Required Keys
ACTION	COUNTRYDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=COUNTRYDATA

Example response:

CODE

<RESPONSE>
     <RESPONSE/>
</RESPONSE>

Response Keys
TIMEZONE	The time zone used by this country.
VCAREACODE	The area code used for this country.
VCNAME	The name of the country.
XID	The unique identifier of the given object.

Information In Session (License Information)

This Request will give you information regarding your license and other settings. The output below is a reflection of our test account and therefore some of these fields may not be present on your account.

Required Keys
ACTION	LOGINDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=LOGINDATA

Example response:

CODE

<RESPONSE>
   <USERLIST>
      <USER>
         <NAME>Api Api</NAME>
         <USERNAME>APIUSER</USERNAME>
         <COMPANY>Outpost24.com</COMPANY>
         <EMAIL>df@outpost24.com</EMAIL>
         <MOBILE/>
         <LASTLOGONDATE>2014-02-18 08:53</LASTLOGONDATE>
         <NUMBER_LOGON>1113</NUMBER_LOGON>
         <LASTLOGONIP>91.216.32.3</LASTLOGONIP>
         <COUNTRYCODE>gb</COUNTRYCODE>
         <COUNTRY>Sweden</COUNTRY>
         <STATE>--</STATE>
         <IS_SUBUSER>1</IS_SUBUSER>
         <ALL_TARGETGROUPS>1</ALL_TARGETGROUPS>
         <GMTOFFSET>0.00</GMTOFFSET>
         <DATEFORMAT>Y-m-d</DATEFORMAT>
         <TIMEFORMAT>H:i</TIMEFORMAT>
         <SERVERTIME>2014-02-18 08:59</SERVERTIME>
         <SHOWGUIDE>0</SHOWGUIDE>
         <SHOWPCIINFO>1</SHOWPCIINFO>
         <STARTDAYOFWEEK>1</STARTDAYOFWEEK>
         <LANGUAGE>en</LANGUAGE>
         <STARTPAGE>/js/plugins-4.1.129.12.js.gzip,/js/desktop-
4.1.129.12.js.gzip,/js/init-4.1.129.12.js.gzip,/js/pci_addon-4.1.129.12.js.gzip</STARTPAGE>
         <SHOWMONITOR>0</SHOWMONITOR>
         <MAXIP>8</MAXIP>
         <MAXPCIIP>5</MAXPCIIP>
         <SESSIONTIMEOUT>0</SESSIONTIMEOUT>
         <AUDITTARGETMANAGEMENT>1</AUDITTARGETMANAGEMENT>
         <AUDITSCHEDULEMANAGEMENT>0</AUDITSCHEDULEMANAGEMENT>
         <AUDITSCANPOLICYMANAGEMENT>0</AUDITSCANPOLICYMANAGEMENT>
         <AUDITRISKACCEPTANCE>0</AUDITRISKACCEPTANCE>
         <AUDITCHANGERISKLEVEL>0</AUDITCHANGERISKLEVEL>
         <CSRFVALIDATION>0</CSRFVALIDATION>
         <MAXWEBAPPS>5</MAXWEBAPPS>
         <P3DAYS>60</P3DAYS>
         <P4DAYS>14</P4DAYS>
         <P5DAYS>7</P5DAYS>
         <PACTIVE>7</PACTIVE>
         <P3LABEL>P3</P3LABEL>
         <P4LABEL>P2</P4LABEL>
         <P5LABEL>P1</P5LABEL>
         <FORCEGROUPSCHEDULING>1</FORCEGROUPSCHEDULING>
         <SCANPOLICYOWNERSHIP>0</SCANPOLICYOWNERSHIP>
         <SERVICES>1</SERVICES>
         <STRATEGY>1</STRATEGY>
         <MANAGEDSERVICESLIMITED>0</MANAGEDSERVICESLIMITED>
         <ACCEPTEDLENGTH>30</ACCEPTEDLENGTH>
         <ACCEPTTARGETS>0</ACCEPTTARGETS>
         <TWOFACTORAUTHENTICATIONMETHOD>0</TWOFACTORAUTHENTICATIONMETHOD>
         <SHOWVALIDATIONRECOMMENDATION>0</SHOWVALIDATIONRECOMMENDATION>
         <SUPERUSER>1</SUPERUSER>
         <SCAN_SETTINGS>0</SCAN_SETTINGS>
         <SCAN_REPORTS>0</SCAN_REPORTS>
         <SCAN_SCHEDULING>0</SCAN_SCHEDULING>
         <TARGET_ADD>0</TARGET_ADD>
         <TARGET_DELETE>0</TARGET_DELETE>
         <REPORT_DISABLE>0</REPORT_DISABLE>
         <REPORT_DELETE>0</REPORT_DELETE>
         <USERROLES_ADMIN>0</USERROLES_ADMIN>
         <TARGETGROUP_ADMIN>0</TARGETGROUP_ADMIN>
         <FINDING_ADMIN>0</FINDING_ADMIN>
         <RECEIVE_EMAIL>0</RECEIVE_EMAIL>
         <ACCEPT_RISKS>0</ACCEPT_RISKS>
         <SCAN_VERIFY>0</SCAN_VERIFY>
         <WEBAPPADMIN>0</WEBAPPADMIN>
         <WEBAPPREPORTING>0</WEBAPPREPORTING>
         <WEBAPPDELETEREPORT>0</WEBAPPDELETEREPORT>
         <STOPSCAN>0</STOPSCAN>
         <DASHBOARD>0</DASHBOARD>
         <RECEIVE_SMS>0</RECEIVE_SMS>
         <PCI_SUBUSER>0</PCI_SUBUSER>
         <PCISCOPING>0</PCISCOPING>
         <PCISCHEDULING>0</PCISCHEDULING>
         <PCIREPORTING>0</PCIREPORTING>
         <PCIDISPUTING>0</PCIDISPUTING>
         <PCIEMAILADDRESS>df@outpost24.com</PCIEMAILADDRESS>
         <SUBUSERXID>4710</SUBUSERXID>
         <USERROLE>Super User</USERROLE>
         <PRODUCT>OUTSCAN PCI OUTSCAN WAS HIAB SERVICES STRATEGY ,AGENT</PRODUCT>
         <IS_ADMIN>1</IS_ADMIN>
         <XID>114</XID>
         <XIPARENTID>101</XIPARENTID>
         <IS_SALES>1</IS_SALES>
         <ISSERVICES>1</ISSERVICES>
         <SYSTEM>OUTSCAN</SYSTEM>
         <VERSION>4.1.129.39</VERSION>
      </USER>
   </USERLIST>
</RESPONSE>

Response Keys
ACCEPT_RISKS	Is the account allowed to accept risks.
ACCEPTEDLENGTH	The number of days the vulnerability has been accepted.
ACCEPTTARGETS	Boolean value if the user is allowed to accept.
ALL_TARGETGROUPS	Set to 1 if not all targets are available.
AUDITCHANGERISKLEVEL	Boolean flag if the user is required to supply an audit comment when changing a risk level for a report finding.
AUDITRISKACCEPTANCE	Boolean flag if the user is required to supply an audit comment when accepting a risk.
AUDITSCANPOLICYMANAGEMENT	Boolean flag if the user is required to supply an audit comment when doing a scan policy management.
AUDITSCHEDULEMANAGEMENT	Boolean flag if the user is required to supply an audit comment when doing a schedule management.
AUDITTARGETMANAGEMENT	Boolean flag if the user is required to supply an audit comment when doing a target management.
COMPANY	The name of the company for this account.
COUNTRY	The country for this account, See Country Codes section.
COUNTRYCODE	The country code for this account, See Country Codes section.
CSRFVALIDATION	Boolean flag if the Cross Site Request Forgery function should be enabled.
DASHBOARD	Can this account view the dashboard.
DATEFORMAT	The format that should be used when presenting dates.
EMAIL	Email address for this account.
FINDING_ADMIN	Deprecated
FORCEGROUPSCHEDULING	Boolean flag which will enforce only use of groups if set.
GMTOFFSET	The offset from GMT used when displaying time information in this account.
ISSERVICES	Boolean flag whether this account can supply reports in the service.
IS_ADMIN	Boolean flag whether the account has administration rights.
IS_SALES	Boolean flag if this account is a sales organization.
IS_SUBUSER	Boolean flag whether account is a sub account.
LANGUAGE	The language for this account. See Country Codes section.
LASTLOGONDATE	The last date this account was logged on to.
LASTLOGONIP	From which IP the login occurred.
MANAGEDSERVICESLIMITED	Boolean flag if the service reports access can bi limited per sub user.
MAXIP	The maximum number of targets the account is allowed to use in the OUTSCAN system.
MAXPCIIP	The maximum number of targets the account is allowed to add to the PCI system.
MAXWEBAPPS	The maximum number of WEB applications this account is allowed to use.
MOBILE	Mobile/Cellphone number associated with this account.
NAME	The user name which was used during log in.
NUMBER_LOGON	The number of log in that this account has done since it was created.
P3DAYS	The Number of days before a task of priority level 3 is escalated.
P4DAYS	The Number of days before a task of priority level 4 is escalated.
P5DAYS	The Number of days before a task of priority level 5 is escalated.
P3LABEL	Text label for priority level 3.
P4LABEL	Text label for priority level 4.
P5LABEL	Text label for priority level 5.
PACTIVE	Boolean flag whether this account is active or not.
PCIDISPUTING	Can this account dispute PCI findings.
PCIEMAILADDRESS	The primary email address used for contact when doing PCI disputes.
PCIREPORTING	Can this account access PCI reports.
PCISCHEDULING	Can this account schedule PCI scans.
PCISCOPING	Can this account change PCI scope.
PCI_SUBUSER	Is this account a sub user in the PCI solution.
PRODUCT	A list of products which is associated with this account.
RECEIVE_EMAIL	Can this account receive report email.
RECEIVE_SMS	Can this account receive SMS notifications.
REPORT_DELETE	Can this account delete reports.
REPORT_DISABLE	Can the user mark findings as false positives.
SCANPOLICYOWNERSHIP	Boolean flag if newly created scan policies should be visible to all users.
SCAN_REPORTS	Can the user see reports.
SCAN_SCHEDULING	Can this account modify scan schedulings.
SCAN_SETTINGS	Can this account modify scan settings.
SCAN_VERIFY	Can this account perform verify scans.
SERVERTIME	The local time of the server.
SERVICES	Boolean flag whether this account has the service product.
SESSIONTIMEOUT	The session timeout in minutes.
SHOWGUIDE	Boolean value which tells if the guide should be showed upon login.
SHOWMONITOR	Boolean flag whether to display the monitor application in the menu.
SHOWPCIINFO	Boolean flag whether the PCI information window should be displayed.
SHOWRELEASENOTES	Boolean flag if release notes should be presented when you log in (Please note that this field may not be present).
SHOWVALIDATIONRECOMMENDATION	Boolean flag if the two factor tip should be displayed after log in.
STARTDAYOFWEEK	First day of week.
STARTPAGE	Internal value. Used by the GUI.
STATE	The state for this account.
STOPSCAN	Can this account stop running scans.
STRATEGY	Boolean flag whether this account has the strategy product.
SUBUSERXID	The unique id for this sub user.
SUPERUSER	Does this account have the same rights as the main account.
SYSTEM	The name of the system you have connected to.
TARGETGROUP_ADMIN	Can this account change target groups.
TARGET_ADD	Can this account add target.
TARGET_DELETE	Can this account remove target.
TIMEFORMAT	The format that should be used when presenting time.
TWOFACTORAUTHENTICATIONMETHOD	Method used for two factor authentication.
USERNAME	The user name which was used during login.
USERROLE	The roles the user is granted.
USERROLES_ADMIN	Can this account change the user roles.
VERSION	The version of the system you are connected to.
WEBAPPADMIN	Can this account manage web application settings.
WEBAPPDELETEREPORT	Can this account remove web application reports.
WEBAPPREPORTING	Can this account view application reports.
XID	The unique identifier of the given object.
XIPARENTID	The unique id for any parent object for this object within the system.

State Codes

A complete and up to date list of supported state codes by the system can be retrieved from the system. Whenever the state field is given to the system it will be validated against these values. See Appendix F.

Required Keys
ACTION	STATEDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=STATEDATA

Example response:

CODE

<RESPONSE>
     <RESPONSE/>
</RESPONSE>

Response Keys
COUNTRXID	The country id.
TIMEZONE	The time zone used by this state.
VCNAME	The name of the state.
XID	The short form of the name for this state.

Account

This section describes how to change user name, password, and any account details.

See the List Account section for information about the meaning of the different fields that can be changed.

It also reports any restraints that may be present on your account, for example if you do not have access to all targets.

Update Account

This section describes how you can change user name, password, and other account details.

Required Keys
ACTION	UPDATEACCOUNTDATA

Optional Keys

Along with the above required key you can also submit any of the additional keys in case you would like to update them.

Optional Keys
LANGUAGE	The language set on the user profile.
PASSWD1	Change password, you are required to submit PASSWD1, PASSWD2, and VCOLDPASSWORD in order to update it.
PASSWD2	Change password, you are required to submit PASSWD1, PASSWD2, and VCOLDPASSWORD in order to update it.
SESSIONTIMEOUT	The timeout value used when determine if the users session should be considered invalid.
VCCOUNTRY	The country the user is located in.
VCEMAIL	The users email address within the system.
VCFIRSTNAME	The first name (spoken name) of the user.
VCLASTNAME	The last name (surname) of the user.
VCOLDPASSWORD	Change password, you are required to submit PASSWD1, PASSWD2, and VCOLDPASSWORD in order to update it.
VCPHONEDAY	The phone number of the user.
VCPHONEMOBILE	The mobile phone number of the user.
VCUSERNAME	The name of the user which we would like to log in to.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=UPDATEACCOUNTDATA

The above given request generates a generic response.

More information about this response type is available in Appendix A.

List Account

This function allows you to see the settings on your account along with any restrictions that may be present.

Required Keys
ACTION	ACCOUNTDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XDI=-1&ACTION=ACCOUNTDATA

Example response:

CODE

<RESPONSE>
   <USERLIST>
      <USER>
         <XID>4710</XID>
         <VCFIRSTNAME>Api</VCFIRSTNAME>
         <VCLASTNAME>Api</VCLASTNAME>
         <VCFULLNAME>Api Api</VCFULLNAME>
         <PARENT>Top Level</PARENT>
         <VCEMAIL>df@outpost24.com</VCEMAIL>
         <BACTIVE>1</BACTIVE>
         <VCUSERNAME>APIUSER</VCUSERNAME>
         <DLASTLOGON>2014-02-18 08:59</DLASTLOGON>
         <ILOGON>1114</ILOGON>
         <XISUBPARENTID>-1</XISUBPARENTID>
         <ITEST>-1</ITEST>
         <IFAILEDLOGON>0</IFAILEDLOGON>
         <BSUBUSER>1</BSUBUSER>
         <VCPASSWORD>$2a$10$8RTdaJZ0NIz/ne8GEKkAWO.RYCyw/.Uw0Mn3xTHheFN95u4LS/e0u</VCPASSWORD>
         <IEMAILTYPE>1</IEMAILTYPE>
         <BSECURITYEMAIL>1</BSECURITYEMAIL>
         <BREPORTTYPE>0</BREPORTTYPE>
         <BDISCOVERYEMAIL>1</BDISCOVERYEMAIL>
         <XVCIP>91.216.32.3</XVCIP>
         <DEMAIL>2012-10-30 12:58</DEMAIL>
         <BREMOVEREPORT>0</BREMOVEREPORT>
         <BOALLHOSTS>1</BOALLHOSTS>
         <BSMSREPORT>0</BSMSREPORT>
         <IDATASOURCE>0</IDATASOURCE>
         <STATE>--</STATE>
         <VCCOUNTRY>gb</VCCOUNTRY>
         <COUNTRY>United Kingdom</COUNTRY>
         <VCSTATE>--</VCSTATE>
         <STATE>--</STATE>
         <GROUPLIST/>
         <TARGETLIST/>
         <USERGROUPLIST/>
         <SCANNERLIST/>
         <ALLSCANNERS>1</ALLSCANNERS>
         <VCCOMPANY>Outpost24.com</VCCOMPANY>
         <GMTOFFSET>0.00</GMTOFFSET>
         <LANGUAGE>en</LANGUAGE>
         <DATEFORMAT>Y-m-d</DATEFORMAT>
         <TIMEFORMAT>H:i</TIMEFORMAT>
         <AUTHENTICATIONMETHOD>0</AUTHENTICATIONMETHOD>
         <SHOWGUIDE>0</SHOWGUIDE>
         <STARTDAYOFWEEK>1</STARTDAYOFWEEK>
         <XPATHUP>,4710,</XPATHUP>
         <XOSIP>8</XOSIP>
         <XOSSCAN>1</XOSSCAN>
         <XPCIIP>5</XPCIIP>
         <XPCISCAN>0</XPCISCAN>
         <XHIABEXTERNALIP>0</XHIABEXTERNALIP>
         <XHIABIP>-1</XHIABIP>
         <XHIABSCHEDULE>-1</XHIABSCHEDULE>
         <XHIABSCHEDULEADD>0</XHIABSCHEDULEADD>
         <XHIABMERGE>0</XHIABMERGE>
         <XHIABCLOSED>0</XHIABCLOSED>
         <MAXWEBAPPS>5</MAXWEBAPPS>
         <WEBAPPSCANS>0</WEBAPPSCANS>
         <WEBAPPSCANSLEFT>4</WEBAPPSCANSLEFT>
         <WEBAPPTRIAL>0</WEBAPPTRIAL>
         <EXTERNALWEBAPPSCANSLEFT>0</EXTERNALWEBAPPSCANSLEFT>
         <HIABEXTERNALWEBAPPS>0</HIABEXTERNALWEBAPPS>
         <XOOSIP>0</XOOSIP>
         <XOOSSCHEDULE>0</XOOSSCHEDULE>
         <XOOSSCHEDULEADD>0</XOOSSCHEDULEADD>
         <XOOSCLOSED>0</XOOSCLOSED>
         <ISECURITYLEFT>2</ISECURITYLEFT>
         <IPCISCANSLEFT>5</IPCISCANSLEFT>
         <IEXTERNALSCANSLEFT>0</IEXTERNALSCANSLEFT>
         <SUPERUSER>1</SUPERUSER>
         <RISKAGE>60</RISKAGE>
         <CUSTOMCOMPANYNAME>My company</CUSTOMCOMPANYNAME>
         <CUSTOMREPORTHEADER>Custom header text</CUSTOMREPORTHEADER>
         <CUSTOMREPORTFOOTER>Custom footer text</CUSTOMREPORTFOOTER>
         <WASMAXIMUMLINKS>2000</WASMAXIMUMLINKS>
         <PASSWORDAGE>356</PASSWORDAGE>
         <TICKETPARENT>-1</TICKETPARENT>
         <PACTIVE>31</PACTIVE>
         <ALLWEB>1</ALLWEB>
         <AUTOMATICGMT>1</AUTOMATICGMT>
         <CHANGEPASSWORDONLOGON>0</CHANGEPASSWORDONLOGON>
         <SYSTEMNOTIFICATIONS>0</SYSTEMNOTIFICATIONS>
         <TWOFACTORAUTHENTICATION>0</TWOFACTORAUTHENTICATION>
         <MAXIP>8</MAXIP>
         <MAXSCAN>1</MAXSCAN>
         <MAXPCIIP>5</MAXPCIIP>
         <MAXPCISCAN>0</MAXPCISCAN>
         <BOEMAIL>1</BOEMAIL>
         <BOSETTINGS>1</BOSETTINGS>
         <BOREPORTS>1</BOREPORTS>
         <BOSCHEDULES>1</BOSCHEDULES>
         <BSUBADMIN>1</BSUBADMIN>
         <BOADMINGROUPS>1</BOADMINGROUPS>
         <BHADMIN>1</BHADMIN>
         <BOWAIVER>1</BOWAIVER>
         <BOSMS>1</BOSMS>
         <BODISABLE>1</BODISABLE>
         <BHMONITOR>1</BHMONITOR>
         <BOVULTEXT>1</BOVULTEXT>
         <BODELETEIP>1</BODELETEIP>
         <BODELETEREPORT>1</BODELETEREPORT>
         <BADMINUSERGROUP>1</BADMINUSERGROUP>
         <BACCEPTRISK>1</BACCEPTRISK>
         <PCISCOPING>1</PCISCOPING>
         <PCISCHEDULING>1</PCISCHEDULING>
         <PCIREPORTING>1</PCIREPORTING>
         <PCIDISPUTING>1</PCIDISPUTING>
         <WEBAPPADMIN>1</WEBAPPADMIN>
         <WEBAPPREPORTING>1</WEBAPPREPORTING>
         <WEBAPPDELETEREPORT>1</WEBAPPDELETEREPORT>
         <FORCEGROUPSCHEDULING>1</FORCEGROUPSCHEDULING>
         <MANAGEDSERVICES>1</MANAGEDSERVICES>
         <MANAGEDSERVICESCOMMENT>1</MANAGEDSERVICESCOMMENT>
         <VERIFYSCAN>1</VERIFYSCAN>
         <STOPSCAN>1</STOPSCAN>
         <DASHBOARD>1</DASHBOARD>
      </USER>
   </USERLIST>
</RESPONSE>

Response Keys
ALLSCANNERS	Boolean flag which determines if the account has access to all scanners (only valid in a distributed HIAB environment).
ALLWEB	Boolean flag if the account has access to all web application scanning scopes.
AUTHENTICATIONMETHOD	Flag for determining if the user is authenticated via the internal system or a LDAP/AD solution.
AUTOMATICGMT	Boolean flag which will automatically set the GMT offset if true (will use the country details for this).
BACCEPTRISK	Set if the account is allowed to accept risks in the report section.
BACTIVE	Set if the account is enabled.
BADMINUSERGROUP	Set if the account is able to administer user roles.
BDISCOVERYEMAIL	Set if the account is allowed to receive discovery results e-mails.
BHADMIN	Set if the account is allowed to perform HIAB administrative tasks.
BHMONITOR	Set if the account is allowed to use the monitor utility.
BOADMINGROUPS	Set if the account is allowed to administer groups.
BOALLHOSTS	Set if the account has access to all targets.
BODELETEIP	Set if the account is able to delete targets from the system.
BODELETEREPORT	Set if the account is able to remove report from the system.
BODISABLE	Set if the account is able to disable scripts.
BOEMAIL	Set if the account is allowed to receive email notifications.
BOREPORTS	Set if the account is allowed to read reports.
BOSCHEDULES	Set if the account is allowed to schedule scans.
BOSETTINGS	Set if the account is allowed to change scan settings on schedules (scan policies).
BOSMS	Set if the account is allowed to receive SMS notifications.
BOVULTEXT	Set if the account is allowed to comment vulnerabilities.
BOWAIVER	Set if the account has accepted the waiver.
BREMOVEREPORT	Set if the report should be removed after it has been sent out via e-mail.
BREPORTTYPE	The report type that should be included in the e-mail.
BSECURITYEMAIL	Set if the report should be sent out in a e-mail.
BSMSREPORT	Set if the account is allowed to receive SMS notifications on reports.
BSUBADMIN	Set if the account is allowed to administer sub users.
BSUBUSER	Set if the account is a sub user.
CHANGEPASSWORDONLOGON	Set if the password is required to be updated upon the initial log in.
COUNTRY	The country for this account.
CUSTOMCOMPANYNAME	The defined custom company name for this account.
CUSTOMREPORTFOOTER	Custom text which will be available in the footer of the exported PDF report.
CUSTOMREPORTHEADER	Custom text which will be available in the header of the exported PDF report.
DASHBOARD	Boolean flag if the user have access to the dashboard.
DATEFORMAT	The date format which will be used when presenting date information within the system.
DEMAIL	The date when the initial e-mail was sent out.
DLASTLOGON	The date when the account last logged on to the system.
EXTERNALWEBAPPSCANSLEFT	The number of external web applications scans that are left on this account.
FORCEGROUPSCHEDULING	Flag if you are forced to use the groups instead of free text target definition in the schedule section.
GMTOFFSET	The offset from GMT where this user is located (used to display the correct local time in the system).
GROUPLIST/	Comma separated list of granted groups for this account.
HIABEXTERNALWEBAPPS	The total number of external web application scans for this account.
IDATASOURCE	Deprecated
IEMAILTYPE	The type of to send out (HTML/text).
IEXTERNALSCANSLEFT	The number of external scan left on this account.
IFAILEDLOGON	The number of failed login on this account.
ILOGON	The total number of login on this account.
IPCISCANSLEFT	The number of PCI scans left on this account.
ISECURITYLEFT	The number of scans left on this account .
ITEST	The number of scans on this account.
LANGUAGE	The language for this account.
MANAGEDSERVICES	Boolean flag if the user has managed service.
MANAGEDSERVICESCOMMENT	Comment on the manager service.
MAXIP	The maximum number of IPs allowed to be defined on this account.
MAXPCIIP	The maximum number of PCI IPs allowed to be defined on this account.
MAXPCISCAN	The maximum number of PCI scans allowed to be defined on this account.
MAXSCAN	The maximum number of scans allowed to be defined on this account.
MAXWEBAPPS	The maximum number of web application scans allowed to be defined on this account.
PACTIVE	Set if parent account is enabled.
PARENT	The parent id.
PASSWORDAGE	The maximum age of a password before you are required to change it.
PCIDISPUTING	Set if the account is allowed to dispute PCI findings.
PCIREPORTING	Set if the account is allowed to see PCI reports.
PCISCHEDULING	Set if the account is allowed to schedule PCI scans.
PCISCOPING	Set if the account is allowed to change PCI scoping.
RISKAGE	The maximum age of a risk before it violates the company policy.
SCANNERLIST	List of granted scanners for this account.
SHOWGUIDE	Set if the initial guide will be displayed upon log in.
STARTDAYOFWEEK	Value for determining which is the first date of the week.
STATE	The state which the user is located within.
STOPSCAN	Boolean flag if the user is allowed to stop scans.
SUPERUSER	Set if the user has the same access rights as the main account holder.
SYSTEMNOTIFICATIONS	Boolean flag if system notifications should be sent out to this user.
TARGETLIST	The target list as accepted by the graphical user interface.
TICKETPARENT	The parent account which will receive any tickets assigned to this user if they haven't been resolved within the defined due date.
TIMEFORMAT	The time format to use when displaying time throughout the system.
TWOFACTORAUTHENTICATION	Boolean value if two factor authentication is required.
USERGROUPLIST	List of assigned user roles for this account.
VCCOMPANY	The company name for this account.
VCCOUNTRY	The country for this account.
VCEMAIL	The e-mail address associated with this account.
VCFIRSTNAME	The first name of the user.
VCFULLNAME	The full name (both first and last name) of the user.
VCLASTNAME	The surname of the user.
VCPASSWORD	The password for the user which we try to log in with.
VCSTATE	Current state of the scan.
VCUSERNAME	The name of the user which we would like to log in to.
VERIFYSCAN	Boolean flag if the user can perform verify scan.
WASMAXIMUMLINKS	The maximum number of WAS links that this user can scan.
WEBAPPADMIN	Set if the account can administer the WAS module.
WEBAPPDELETEREPORT	Set if the account is allowed to delete WAS reports.
WEBAPPREPORTING	Set if the account is allowed to see WAS reports.
WEBAPPSCANS	Number of WAS scans in total.
WEBAPPSCANSLEFT	Number of WAS scans left on this account.
WEBAPPTRIAL	Set if the accounthas a trial account for the WAS module.
XHIABCLOSED	Set if the accountHIAB has been disabled.
XHIABEXTERNALIP	The number of external IPsthat the HIAB can have defined.
XHIABIP	The number of IPs allowed on this HIAB.
XHIABMERGE	Deprecated
XHIABSCHEDULE	The number of scans for this account.
XHIABSCHEDULEADD	The number of scans to add for this account.
XID	The unique identifier of the given object.
XISUBPARENTID	The unique id for any parent object for this object within the system.
XOOSCLOSED	Deprecated
XOOSIP	Deprecated
XOOSSCHEDULE	Deprecated
XOOSSCHEDULEADD	Deprecated
XOSIP	Deprecated
XOSSCAN	Deprecated
XPATHUP	Internal use only.
XPCIIP	The number of PCI targets that this account is allowed to have.
XPCISCAN	The number of PCI scans that this account is allowed to perform.
XVCIP	The IP number which this account logged on from the last time.

Attributes

In the system you can create additional attributes which can be made available in different sections.

You can for instance add a Business function field so that this information can be defined and visible in the exported reports if required. It is also possible to define these attributes on users so that you for instance can add his/her role within the company.

The combo type allows you to define a drop down menu which contains static values (this can be used to prevent input errors due to spelling errors).

Update Attribute

This request will allow you to redefine the attribute (and also disable it since it cannot be removed). Within the system you can have 10 attributes defined at the same time

Required Keys
ACCEPTABLEVALUES	This field allows you to define which values are accepted for this specific attribute.
ACTION	UPDATEATTRIBUTEDATA
BACTIVE	Boolean flag if this attribute is active.
COLUMNID	The unique column identifier for this attribute. Up to 10 are allowed to be defined.
EXPORTREPORT	Boolean flag if this attribute is available in exported reports.
FIELDTYPE	The field type defines what type this field has. Available field types: 0 : Text 1 : Combo 2: Check box 3 : Number
NAME	The name of the attribute.
ONUSER	Boolean flag if this attribute is available on users.
REPORTING	Boolean flag if this attribute is available in reporting.
REQUIRED	Boolean flag if this attribute is required to have a value.
TARGET	The target that this entry is about.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?NAME=Test&COLUMNID=1&FIELDTYPE=3&REPORTING=1&TARGET=1&ACCEPTABLEVALUES=1-10&REQUIRED=1&BACTIVE=1&ACTION=UPDATEATTRIBUTEDATA&ONUSER=1&EXPORTREPORT=3

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Attributes

Additional attributes are possible to define in the system. These can for instance be defined as additional values which can be made availble in the target, user or report section.

Required Keys
ACTION	ATTRIBUTEDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=ATTRIBUTEDATA

Example response:

CODE

<RESPONSE>
   <USERLIST>
      <USER>
         <XID>7884</XID>
         <COLUMNID>0</COLUMNID>
         <XUSERXID>114</XUSERXID>
         <NAME>Geographic location</NAME>
         <BACTIVE>1</BACTIVE>
         <ONUSER>0</ONUSER>
         <TARGET>1</TARGET>
         <REPORTING>1</REPORTING>
         <SCHEDULING>0</SCHEDULING>
         <REQUIRED>0</REQUIRED>
         <FIELDTYPE>0</FIELDTYPE>
         <EXPORTREPORT>1</EXPORTREPORT>
      </USER>
   </USERLIST>
</RESPONSE>

Required Keys
ACCEPTABLEVALUES	This field allows you to define which values are accepted for this specific attribute.
BACTIVE	Boolean flag if this attribute is active.
COLUMNID	The unique column identifier for this attribute. Up to 10 are allowed to be defined.
EXPORTREPORT	Boolean flag if this attribute is available in exported reports.
FIELDTYPE	The field type defines what type this field has. Available field types: 0 : Text 1 : Combo 2 : Check box 3 : Number
NAME	The name of the attribute.
ONUSER	Boolean flag if this attribute is available on users.
REPORTING	Boolean flag if this attribute is available in reporting.
REQUIRED	Boolean flag if this attribute is required to have a value.
SCHEDULING	Should this attribute be available in the schedule section.
TARGET	The target that this entry is about.
XID	The unique identifier of the given object.
XUSERXID	The unique user id.

Manage User Accounts

This section describes how to add sub users and define their access rights and roles. An unlimited amount of sub users can be added to the system and they can also be added in an hierarchy so that you can define users that will manage and maintain other users.

The user roles will give you the possibility to create roles within the system that will fit your organization. For example, if you have managers that only should be able to receive reports, they can simply be added and restricted to only perform such action within the system.

User Roles

The user roles are predefined roles which can be assigned to multiple users which will help you when managing the access to the different actions which can be performed within the system.

You can for example create user roles like the following:
   Manager
   SOC - Team
   System owner
   Vulnerability Manager - User
   Vulnerability Manager - Manager
   DBA
   Developer
   Network administrator

It is of course also possible to make them user specific if you have a smaller organization:
Jane Doe
John Smith

Update User Roles

In order to add or update an user role you need to supply the following parameter.

Required Keys
ACTION	UPDATEUSERGROUPDATA
VCNAME	Name of the user role.

Optional Keys

If you would like to create a new role you would enter "-1" (or not supply it at all) as the value for the XID parameter but if you would like to update an already present role you need to supply the unique identification number for that role in that field instead.

Optional Keys
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?VCNAME=RemovemeAPI&ACTION=UPDATEUSERGROUPDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List User Roles

The user roles are predefined roles which can be assigned to multiple users which will help you when managing the access to the different actions which can be performed within the system.

Required Keys
ACTION	UPDATEUSERGROUPDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=USERGROUPDATA

Example response:

CODE

<RESPONSE>
   <USERGROUPLIST>
      <USERGROUP>
         <XID>54</XID>
         <VCNAME>My User Role</VCNAME>
         <BOSETTINGS>1</BOSETTINGS>
         <BOREPORTS>0</BOREPORTS>
         <BOSCHEDULES>1</BOSCHEDULES>
         <BSUBADMIN>0</BSUBADMIN>
         <BOEMAIL>0</BOEMAIL>
         <BOADMINGROUPS>1</BOADMINGROUPS>
         <BHADMIN>0</BHADMIN>
         <BOWAIVER>1</BOWAIVER>
         <BOSMS>0</BOSMS>
         <BODISABLE>0</BODISABLE>
         <BHMONITOR>0</BHMONITOR>
         <BOVULTEXT>0</BOVULTEXT>
         <BODELETEIP>1</BODELETEIP>
         <BODELETEREPORT>0</BODELETEREPORT>
         <BADMINUSERGROUP>1</BADMINUSERGROUP>
         <BACCEPTRISK>0</BACCEPTRISK>
         <PCISCOPING>0</PCISCOPING>
         <PCIREPORTING>0</PCIREPORTING>
         <PCISCHEDULING>0</PCISCHEDULING>
         <PCIDISPUTING>0</PCIDISPUTING>
         <WEBAPPADMIN>0</WEBAPPADMIN>
         <FORCEGROUPSCHEDULING>0</FORCEGROUPSCHEDULING>
         <WEBAPPREPORTING>0</WEBAPPREPORTING>
         <WEBAPPDELETEREPORT>0</WEBAPPDELETEREPORT>
         <MANAGEDSERVICES>0</MANAGEDSERVICES>
         <MANAGEDSERVICESCOMMENT>0</MANAGEDSERVICESCOMMENT>
         <VERIFYSCAN>0</VERIFYSCAN>
         <DASHBOARD>0</DASHBOARD>
         <STOPSCAN>1</STOPSCAN>
      </USERGROUP>
   </USERGROUPLIST>
</RESPONSE>

Response Keys
BACCEPTRISK	Can the user mark a risk as accepted.
BADMINUSERGROUP	Can the user administer user roles.
BHADMIN	Can the user restart the HIAB and setup the HIAB settings, such as backup and networking.
BHMONITOR	Can the user access the network monitor module.
BOADMINGROUPS	Can the user administer targets and target groups.
BODELETEIP	Can the user delete targets.
BODELETEREPORT	Can the user delete scans.
BODISABLE	Can the user mark a vulnerability as false positive.
BOEMAIL	Can the user receive scan report e-mails.
BOREPORTS	Can the user show scan reports.
BOSCHEDULES	Can the user administer scan schedules.
BOSETTINGS	Can the user administer scanning policies.
BOSMS	Is the user allowed to receive SMS notifications.
BOVULTEXT	Can the user change vulnerability comments.
BOWAIVER	Should the waiver be displayed to the user.
BSUBADMIN	Set if the account is allowed to administer sub users.
DASHBOARD	Boolean flag if the user have access to the dashboard.
FORCEGROUPSCHEDULING	If enabled then no Target List section will be available in the Scheduling section.
MANAGEDSERVICES	Can the user access the managed report section.
MANAGEDSERVICESCOMMENT	Can the user add comments to managed reports.
PCIDISPUTING	Can the user dispute findings in the PCI reports.
PCIREPORTING	Can the user access the PCI reporting section.
PCISCHEDULING	Can the user change the PCI scheduling.
PCISCOPING	Can the user change the PCI scoping.
STOPSCAN	Can the user stop running scans.
VCNAME	Name of the user role.
VERIFYSCAN	Can the user perform verify scans.
WEBAPPADMIN	Can the user administer the web application scanner.
WEBAPPDELETEREPORT	Can the user remove the web application scans.
WEBAPPREPORTING	Can the user access the web application scan reports.
XID	The unique identifier of the given object.

Remove User Role

In order to remove an already defined user role you need the unique identification number for that specific role. This is received from the list of already defined user roles ( See section: List User Roles).

Required Keys
ACTION	REMOVEUSERGROUPDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=4020&ACTION=REMOVEUSERGROUPDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Users Accounts

The user account section contains information regarding how your account or sub accounts are defined.

This is also the location where you can change the password on you account. The account details will also provide you with any limitations that may be present on the defined sub accounts within the system.

Update Account

In order to add or update an user account you need to supply the following parameters. If you would like to create a new account you would enter "-1" as the value for the XID parameter but if you would like to update an already present account you need to supply the unique identification number for that role in that field instead.

Required Keys
ACTION	UPDATESUBACCOUNTDATA
VCCOUNTRY	The country for this account.
VCEMAIL	The e-mail address associated with this account.
VCFIRSTNAME	The first name of the user.
VCLASTNAME	The surname of the user.
VCUSERNAME	The name of the user which we would like to log in to.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?VCUSERNAME=removemeapi&VCLASTNAME=removemeapi&XID=-1&VCCOUNTRY=se&VCFIRSTNAME=removemeapi&VCEMAIL=removemeapi@outpost24.com@ACTION=UPDATESUBACCOUNTDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Accounts

In order to see the available defined user roles which you can assign to your sub users you need to retrieve a list of them where you will get the unique identification number of it (XID).

The request has the following parameters:

Required Keys
ACTION	SUBACCOUNTDATA

Example Request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=SUBACCOUNTDATA

Example Response:

CODE

<RESPONSE>
   <USERLIST>
      <USER>
         <XID>2138</XID>
         <VCFIRSTNAME>Jane</VCFIRSTNAME>
         <VCLASTNAME>Doe</VCLASTNAME>
         <VCFULLNAME>Jane Doe</VCFULLNAME>
         <PARENT>Top Level</PARENT>
         <VCEMAIL>df@outpost24.com</VCEMAIL>
         <BACTIVE>1</BACTIVE>
         <VCUSERNAME>OUPOST24SUBUSER</VCUSERNAME>
         <BSUBADMIN>0</BSUBADMIN>
         <DLASTLOGON>2012-05-25 12:54</DLASTLOGON>
         <DCREATED>2009-06-25 11:54</DCREATED>
         <ILOGON>11</ILOGON>
         <XISUBPARENTID>-1</XISUBPARENTID>
         <IEMAILTYPE>1</IEMAILTYPE>
         <COUNTRY>Sweden</COUNTRY>
         <AUTHENTICATIONMETHOD>0</AUTHENTICATIONMETHOD>
         <SHOWGUIDE>1</SHOWGUIDE>
         <STARTDAYOFWEEK>1</STARTDAYOFWEEK>
         <USERGROUPLIST>2996,</USERGROUPLIST>
         <SUPERUSER>0</SUPERUSER>
         <GROUPLIST>21666,21671,</GROUPLIST>
         <SCANNERLIST/>
         <ALLSCANNERS>1</ALLSCANNERS>
         <WASMAXIMUMLINKS>2000</WASMAXIMUMLINKS>
         <TICKETPARENT>0</TICKETPARENT>
         <XPATHUP>,2138,</XPATHUP>
         <USERGROUPNAMES>DBA</USERGROUPNAMES>
         <TARGETLIST/>
         <BOALLHOSTS>0</BOALLHOSTS>
         <SYSTEMNOTIFICATIONS>0</SYSTEMNOTIFICATIONS>
         <TWOFACTORAUTHENTICATION>0</TWOFACTORAUTHENTICATION>
      </USER>
   </USERLIST>
</RESPONSE>

Response Keys
ALLSCANNERS	Boolean flag which determines if the account has access to all scanners (only valid in a distributed HIAB environment).
AUTHENTICATIONMETHOD	Flag for determining if the user is authenticated via the internal system or a LDAP/AD solution.
BACTIVE	Set if your account is enabled.
BOALLHOSTS	Boolean value if the user has access to all OUTSCAN hosts.
BSUBADMIN	Set if the account is allowed to administer sub users. (Please note that this field may not be present).
COUNTRY	The country for this account.
CUSTOM1	Custom attributed defined on either an user or a target. (Please note that this field may not be present).
DCREATED	The date when this account was created.
DEMAIL	The date when the initial eamil was sent out.
DLASTLOGON	The date when the account last logged on to the system.
GROUPLIST	Comma separated list of granted groups for this account.
IEMAILTYPE	The type of email to send out (HTML/text).
ILOGON	The total number of logins on this account.
PARENT	The parent account for this account.
SCANNERLIST	List of granted scanners for this account.
SHOWGUIDE	Set if the initial guide will be displayed upon log in.
STARTDAYOFWEEK	Value for determining which is the first date of the week.
SUPERUSER	Set if the user has the same access rights as the main account holder.
SYSTEMNOTIFICATIONS	Boolean flag if system notifications should be sent out to this user.
TARGETLIST	The target list as accepted by the graphical user interface.
TICKETPARENT	The parent account which will receive any tickets assigned to this user if they haven't been resolved within the defined due date.
TWOFACTORAUTHENTICATION	Boolean value if two factor authentication is required.
USERGROUPLIST	List of assigned user roles for this account.
USERGROUPNAMES	List of user roles that is assigned to this account (Please note that this field may not be present).
VCEMAIL	The e-mail address associated with this account.
VCFIRSTNAME	The first name of the user.
VCFULLNAME	The full name (both first and last name) of the user.
VCLASTNAME	The surname of the user.
VCUSERNAME	The name of the user which we would like to log in to.
WASMAXIMUMLINKS	The maximum number of WAS links that this user can scan.
XID	The unique identifier of the given object.
XISUBPARENTID	The parent id of this sub user.
XPATHUP	Internal use only.

Remove Account

In order to remove an already defined account you need the unique identification number for that specific account. This is retrieved from the list of already defined user account (See section: List Accounts).

Required Keys
ACTION	REMOVESUBACCOUNTDATA
DELETENOTE	Audit note which may be required.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?DELETENOTE=AutoDelete&XID=6203&ACTION=REMOVESUBACCOUNTDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Manage Targets

This section will describe how you can manage your assets within the system. The grouping system will allow you to store the same target in multiple groups which will allow you to define for example groups based on the following:

Geographical location:
   North America
      NY
      LA
   South America
      BR
   Europe
      DE
      UK
   Asia
      CH
      JP

Business function
   Billing
   Ordering
   Support
   Monitoring

Or even based on asset type:
   Web servers
   Routers
   Firewalls
   Mail servers
   DNS servers
   Database servers

Targets

The targets are either IP addresses or host names of system that you would like to perform vulnerability management against. The targets can be added automatically to the system by performing a discovery scan.

On the targets you can also define multiple attributes and also partial scan policies that should only apply to a single host.

Insert Targets

In order to add a target you need to supply the following parameters.

Required Keys
ACTION	INSERTTARGETDATA
ADDNOTE	Audit note that may be required.
GROUP	The group id to add this target into. Set the value to -1 for none.
TARGETLIST	The target list as accepted by the graphical user interface.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?GROUP=-1&TARGETLIST=91.216.32.100&ACTION=INSERTTARGETDATA&ADDNOTE=Test

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Update Targets

Inordet to update a target you need to supply the following parameters.

Required Keys
ACTION	UPDATETARGETDATA
ADDNOTE	Audit note that may be required.
CUSTOM0	Custom attributed defined on either an user or a target.
CUSTOM1	Custom attributed defined on either an user or a target.
CVSS_CDP	CVSS Collateral Damage Potential.
CVSS_SR_AVAIL	CVSS Security Requirements - Availability.
CVSS_SR_CONF	CVSS Security Requirements - Confidentiality.
CVSS_SR_INTEG	CVSS Security Requirements - Integrity.
CVSS_TD	CVSS - Target Distribution.
HIDDENURLS	Hidden URI that are present on this target that you would like to include in the scan.
HOSTNAME	The FQDN of the host.
MACADDRESS	The targets MAC address
VIRTUALHOSTS	The virtual hosts for this target.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?MACADDRESS=&CUSTOM0=&CVSS_CDP=ND&VIRTUALHOSTS=&CUSTOM1=1&HOSTNAME=&CVSS_SR_INTEG=ND&CVSS_SR_AVAIL=ND&XID=509319&HIDDENURLS=&CVSS_TD=ND&CVSS_SR_CONF=ND&ACTION=UPDATETARGETDATA&ADDNOTE=Test

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Targets

In order to see all targets which has been added to the system on your profile you need to supply the following details.

Required keys
ACTION	TARGETDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=TARGETDATA

Example response:

CODE

<RESPONSE>
   <TARGETLIST>
      <TARGET>
         <XID>87382</XID>
         <IPADDRESS>192.168.200.75</IPADDRESS>
         <SCANNERID>0</SCANNERID>
         <SCANNERNAME>Undefined</SCANNERNAME>
         <VIRTUALHOSTS>myserver.company.com</VIRTUALHOSTS>
         <MACADDRESS>00:23:76:a5:b4:df</MACADDRESS>
         <LATESTSCANSTATUS>-1</LATESTSCANSTATUS>
         <CVSS_SR_AVAIL>ND</CVSS_SR_AVAIL>
         <CVSS_SR_INTEG>ND</CVSS_SR_INTEG>
         <CVSS_SR_CONF>ND</CVSS_SR_CONF>
         <CVSS_CDP>ND</CVSS_CDP>
         <CVSS_TD>ND</CVSS_TD>
         <PCI>0</PCI>
         <CONFIRMED>0</CONFIRMED>
         <SYNC>0</SYNC>
         <PLATFORM>ND</PLATFORM>
         <PCICOMPLIANCE>0</PCICOMPLIANCE>
         <AUTHENTICATIONTYPE>0</AUTHENTICATIONTYPE>
         <USESLICENSE>0</USESLICENSE>
         <LIMITED>1</LIMITED>
      </TARGET>
   </TARGETLIST>
</RESPONSE>

Response keys
AUTHENTICATIONTYPE	Authentication type used: 0 : SMB 1 : SSH.
CONFIRMED	Boolean flag if this target is confirmed within the PCI section.
CUSTOM0	Custom attributed defined on either an user or a target.
CUSTOM1	Custom attributed defined on either an user or a target.
CUSTOM2	Custom attributed defined on either an user or a target.
CUSTOM3	Custom attributed defined on either an user or a target.
CUSTOM4	Custom attributed defined on either an user or a target.
CUSTOM5	Custom attributed defined on either an user or a target.
CUSTOM6	Custom attributed defined on either an user or a target.
CUSTOM7	Custom attributed defined on either an user or a target.
CUSTOM8	Custom attributed defined on either an user or a target.
CUSTOM9	Custom attributed defined on either an user or a target.
CVSS_CDP	CVSS Collateral Damage Potential.
CVSS_SR_AVAIL	CVSS Security Requirements - Availability.
CVSS_SR_CONF	CVSS Security Requirements - Confidentiality.
CVSS_SR_INTEG	CVSS Security Requirements - Integrity.
CVSS_TD	CVSS - Target Distribution.
HOSTNAME	The FQDN of the host.
IPADDRESS	The IP address of the target.
LASTDISCOVERYDATE	The last date when the discovery scan was executed (Please note that this field may not be present).
LATESTSCANDATE	The latest scan date of this target (Please note that this field may not be present).
LATESTSCANSTATUS	The latest scan status of this target.
LATESTSUCCESSFULSCANDATE	The last date whena scan was successfully done against this target (Please note that this field may not be present).
LIMITED	The presence of this field indicates that the response has been limited by the use of the "limit" parameter in the request.
MACADDRESS	The targets MAC address
PCI	Boolean flag if this target is part of the PCI product.
PCICOMPLIANCE	Boolean flag if this target is PCI compliant.
PLATFORM	The detected platform for this target.
SCANNERID	The scanner id which this target will be tested from.
SCANNERNAME	The scanner name of the above scanner id.
SYNC	Internal use only.
USESLICENSE	Boolean value if this target utilize any license.
VIRTUALHOSTS	The virtual hosts for this target.
XID	The unique identifier of the given object.

Remove Targets

In order to remove a target you need the unique identification number for that specific target. This is retrieved from the list of already defined targets (See section: List Targets).

Required keys
ACTION	REMOVETARGETDATA
DELETENOTE	Audit note which may be required.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?DELETENOTE=AutoDelete&XID=509319&ACTION=REMOVETARGETDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Groups

A couple of special target groups are in the system by default (these can not be removed or updated):

All Targets: This group contains all the targets that have been added to the system.

Ungrouped: contains all targets that are not present in another group defined within the system.

The group system will allow you to store the same target in multiple groups. This opens up for the possibility to create groups specifically for reporting, scheduling, target assignment and event notifications.

Update Group

In order to update a group you need to supply the following parameters.

Required keys
ACTION	UPDATETARGETGROUDATA
NAME	Name of the group
XID	The unique identifier of the object that you would like to update. Omit or set to -1 if you would like to add a new group to the system.

Optional Keys

This function is not only for adding a group which the example shows you. You can of course also add or remove targets with the use of that function. In order to do that you should supply either of the following parameters to the request. You would need to know the unique id values of the targets in order to add them but they can be extracted from the system, please see the List Target section.

Optional keys
ADDTARGETLIST	Comma separeted list of unique targets id which you would like to add to the group.
REMOVETARGETLIST	Comma separeted list of unique targets id which you would like to remove from the group.

Example Request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?NAME=TESTAPI&XID=-1&ACTION=UPDATETARGETGROUDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Target Group

In order to see all the groups which has been added to the system on your profile you need to supply the following details.

Required keys
ACTION	TARGETGROUPDATA

Example Request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=UPDATETARGETGROUDATA

Example Response:

CODE

<RESPONSE>
   <GROUPLIST>
      <GROUP>
         <XID>-1</XID>
         <XIPARENTID>-3</XIPARENTID>
         <NAME>All targets</NAME>
         <ICOUNT>9</ICOUNT>
         <RULEBASED>0</RULEBASED>
         <REPORTBASED>0</REPORTBASED>
         <DESCRIPTION/>
         <LIMITED>1</LIMITED>
      </GROUP>
   </GROUPLIST>
</RESPONSE>

Response keys
DESCRIPTION	Description of the object.
ICOUNT	The number of targets within this scan scope.
LIMITED	The presence of this field indicates that the response has been limited by the use of the `limit` parameter in the request.
NAME	The name of the attribute.
REPORTBASED	Boolean flag if this group is based on a report filter.
RULEBASED	Boolean flag if this group is based on a target filter.
XID	The unique identifier of the given object.
XIPARENTID	The unique id for any parent object for this object within the system.

Remove Group

In order to remove a target you need the unique identification number for that specific group. This is retrieved from the list of already defined groups (See section: List Groups).

Required keys
ACTION	REMOVETARGETGROUPDATA
XID	The unique identifier of the given object.

Example Request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=30381&ACTION=REMOVETARGETGROUDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Manage Schedule

This is the section where you perform the scheduling of the target scans, creates scanning policies and see the status of the scans.

The scan history section will allow you to see when a scan started, ended, duration and any errors that might have occurred during the scan.

Scan policies will allow you to change the settings for the scan so that you can either go deeper into the targets (with the use of authenticated scan) or change the selection of test to be utilized during the scan. The system comes with a predefined set of scanning policies which will allow you to perform simplified, normal or extend scans.

There is an unsafe scanning policy defined. Please note that this is NOT supposed to be used against a live production environment. The intention with this scan policy is to use it prior to putting a server into production as a form of acceptance test. Please make sure that you have a working backup just in case when performing such a scan.

The scan schedules section will allow you to set up simple or complex scanning rules with scan windows and against already defined targets or groups as for dynamic network ranges.

In the running scans part you will be able to extract the currently running scans along with their status. These can then either be paused or stopped depending on your requirements.

Scan History

In order to see what has been executed in the past on your account you can retrive a scan log which will contain the history of your scanning.

Required keys
ACTION	SCANLOG

Optional Keys

The following parameters can be supplied in case you would like to exclude specific entries from being retrieved.

Required keys
EXCLUDEEMPTY	Boolean value if empty scan logs should be included in the results.
ITYPE	The type of this entry, see Appendix C.

Example Request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=SCANLOG

Example Response:

CODE

<RESPONSE>
   <SCANLOGLIST>
      <SCANLOG>
         <XID>155468</XID>
         <VCHOST>83.233.57.212</VCHOST>
         <XIPXID>-1</XIPXID>
         <DSCANSTARTDATE>2006-05-31 06:57</DSCANSTARTDATE>
         <DSCANENDDATE>2006-05-31 06:59</DSCANENDDATE>
         <ITYPE>1</ITYPE>
         <XTEMPLATE>0</XTEMPLATE>
         <SCANNERID>0</SCANNERID>
         <XSOXID>1723400</XSOXID>
         <SCHEDULEJOB>Recovered</SCHEDULEJOB>
         <DISCOVERYTEMPLATE/>
         <TARGET>83.233.57.212</TARGET>
         <XSCANJOBXID>900067</XSCANJOBXID>
         <IID>0</IID>
         <SCANNERNAME>Local</SCANNERNAME>
         <CONFIRMED>0</CONFIRMED>
         <COMPLIANT>0</COMPLIANT>
         <FROMHIAB>0</FROMHIAB>
         <SCANTIME>00:02:00</SCANTIME>
         <SUBMITTED>0</SUBMITTED>
         <LAST>0</LAST>
         <CANUPDATE>0</CANUPDATE>
         <SCANLESS>0</SCANLESS>
         <LATESTSCANUPDATE>2006-05-31 06:57</LATESTSCANUPDATE>
         <HASWASSTATS>0</HASWASSTATS>
         <LIMITED>1</LIMITED>
      </SCANLOG>
   </SCANLOGLIST>
</RESPONSE>

Response key
CANUPDATE	Boolean flag if this entry can be updated using the SLS feature.
COMPLIANT	Boolean flag which shows if the target where compliant according to the PCI guidelines in case the scan refers to such a target.
CONFIRMED	Boolean flag if this target is confirmed within the PCI section.
DISCOVERYTEMPLATE	Name of the discovery job if it's a discovery.
DSCANENDDATE	The date and time when the scan ended.
DSCANSTARTDATE	The date and time when the scan started.
FROMHIAB	Boolean flag which is set to 1 if the scan originated from a HIAB (only viable on OUTSCAN).
HASWASSTATS	Boolean flag if the target has web application scanning statistics.
IID	Internal use only.
ITYPE	The type of this entry, see Appendix C.
LAST	Boolean value if this is the latest entry for this target.
LASTSCANUPDATE	Date and time when this scan where last updated using the SLS thechnology.
LIMITED	The presence of this field indicates that the response has been limited by the use of the `limit` parameter in the request.
SCANLESS	Boolean value if this is an SLS update of the report.
SCANNERID	The scanner id which this target will be tested from.
SCANNERNAME	The name of the scanner where this action takes place.
SCANTIME	The total amount of time the scan took.
SCHEDULEJOB	The name of the schedule job which is associated with this entry.
SUBMITTED	Boolean flag if this target is a PCI target and that the report has not been submitted yet in this quarter.
TARGET	The target that this entry is about.
TEMPLATE	The scan policy utilized by this object.
VCHOST	The IP or host name of the target which where tested.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XSCANJOBXID	The unique identifier of the scan job log object which contain all individual targets (entry with scan type set in the 20 range).
XSOXID	The unique identifier of the schedule object which contain the schedule preferences.
XTEMPLATE	The unique identifier of the scan policy utilized by this object.

Scan Policy

The scan policy is used to define rules and settings for the scan to use when it is executed.

These scan policies allows you to specify what test to execute and also provide specific settings for different services.

Update Scan Policy

In order to add or uppdate scan policy you need to supply the following parameters. If you would like to create a scan policy you would enter "-1" as the value for the XID parameter but if you would like to update an already present role you need to supply the unique identification number for that scan policy in that field instead.

Required keys
ACTION	UPDATETEMPLATEDATA
NAME	The name of the scan policy.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?NAME=PemoveMeAPI&XID=-1&ACTION=UPDATETEMPLATEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Scan Policy

In order to see a list of available scanning policies you shall supply the following information. The scanning policies allows you to define credentials for different services that may be available. This may allow the scanner to log in and retrieve additional information like which patches are installed on the tested server and hence produce a more accurate report.

Required keys
ACTION	TEMPLATEDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=TEMPLATEDATA

Example reponse:

CODE

<RESPONSE>
   <TEMPLATELIST>
      <TEMPLATE>
         <XID>1</XID>
         <NAME>Port scan</NAME>
         <DESCRIPTION>This scan policy will only perform a port scan on the defined TCP and UDP ports within the policy.</DESCRIPTION>
         <GLOBAL>1</GLOBAL>
         <ENABLEDFAMILYLIST/>
         <DISABLEDFAMILYLIST/>
         <ENABLEDSCRIPTLIST/>
         <DISABLEDSCRIPTLIST>-1,</DISABLEDSCRIPTLIST>
         <OWNER>OUTPOST24 ADMINISTRATOR</OWNER>
         <LIMITED>1</LIMITED>
      </TEMPLATE>
   </TEMPLATELIST>
</RESPONSE>

Response key
DESCRIPTION	Short description of the scan policy.
DISABLEFAMILYLIST	A comma separated list of families that has been disabled in this scan policy.
DISABLESCRIPTLIST	A comma separated list of script ids that has been disabled in this scan policy.
ENABLEFAMILYLIST	A comma separated list of families that has been enabled in this scan policy.
ENABLESCRIPTLIST	A comma separated list of script ids that has been enabled in this scan policy
GLOBAL	Boolean flag if the template is avialable to other users within your company.
LIMITED	The presence of this field indicates that the response has been limited by the use of the limit parameter in the request.
NAME	The name of the template.
OWNER	The owner of the object.
XID	The unique identifier of the given object.

Remove Scan Policy

In order to remove a scan policy job you need the unique identification number for that specific scan policy. This is retrieved from the list of already defined scanning policies (See section: List Scan Policies).

Required keys
ACTION	REMOVETEMPLATEDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=3451&ACTION=REMOVETEMPLATEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Scan Schedule

The schedules are groups of targets on which you would like to execute scans against at specific times. A schedule can be set to repeat at a certain interval but also be set to only run once or started manually.

Update Scan Schedule

In order to add or update an user role you need to supply the following parameters. If you would like to create a new role you would enter "-1" as the value for the XID parameter but if you would like to update an already present role you need to supply the unique identifier for that role in that field instead.

Required keys
ACTION	UPDATESCHEDULEDATA
NAME	The name of the schedule job that you would like to add/update
XID	MUST be set to "-1" if you do not update an already existing schedule.
XUSERXID	MUST be supplied, this value can be retrieved from the LOGINDATA function.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XUSERXID=114&NAME=RemoveMeAPI&XID=-1&ACTION=UPDATESCHEDULEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Scan Schedule

In order to see all the scheduled jobs which has been added to the system on your profile you need to supply the following details.

Required keys
ACTION	SCHEDULEDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=SCHEDULEDATA

Example Response:

CODE

<RESPONSE>
   <SCHEDULELIST>
      <SCHEDULE>
         <XID>1731319</XID>
         <TARGETLIST/>
         <GROUPLIST>4523,</GROUPLIST>
         <TEMPLATEID>2</TEMPLATEID>
         <SCANCOUNT>0</SCANCOUNT>
         <MAXSCANTIME>12</MAXSCANTIME>
         <LATESTSCANDATE>2009-11-19 12:00</LATESTSCANDATE>
         <LATESTSCANSTATUS>20</LATESTSCANSTATUS>
         <FREQUENCY>1</FREQUENCY>
         <DAYWEEKMONTH>0</DAYWEEKMONTH>
         <NAME>Application server</NAME>
         <OWNER>Daniel Fredriksson</OWNER>
         <ICOUNT>1</ICOUNT>
         <SCANWINDOWS>1</SCANWINDOWS>
         <SCANWINDOWDELAY>1</SCANWINDOWDELAY>
         <SCANMODE>2</SCANMODE>
         <DNSLOOKUP>1</DNSLOOKUP>
         <NETBIOSLOOKUP>1</NETBIOSLOOKUP>
         <CVSS_SR_AVAIL>ND</CVSS_SR_AVAIL>
         <CVSS_SR_INTEG>ND</CVSS_SR_INTEG>
         <CVSS_SR_CONF>ND</CVSS_SR_CONF>
         <CVSS_CDP>ND</CVSS_CDP>
         <CVSS_TD>ND</CVSS_TD>
         <DISABLEPROTOCOL>0</DISABLEPROTOCOL>
         <EMPTYTARGETGROUP>0</EMPTYTARGETGROUP>
         <SCANLESS>0</SCANLESS>
         <WAKEONLANDELAY>0</WAKEONLANDELAY>
         <FROMLDAP>0</FROMLDAP>
         <LATESTSCANDURATION>00:23:00</LATESTSCANDURATION>
         <AVERAGESCANDURATION>00:38:00</AVERAGESCANDURATION>
         <DELETED>0</DELETED>
      </SCHEDULE>
   </SCHEDULELIST>
</RESPONSE>

Response key
ADDTOGROUPXID	Add found targets to the following group (if schedule jod is a discovery scan)
AVERAGESCANDURATION	The average scan time.
CONCURRENTSCANS	Number of concurrent scansallowed in this schedul job
CVSS_CDP	CVSS Collateral Damage Potential.
CVSS_SR_AVAIL	CVSS Security Requirements - Availability.
CVSS_SR_CONF	CVSS Security Requirements - Confidentiality.
CVSS_SR_INTEG	CVSS Security Requirements - Integrity.
CVSS_TD	CVSS - Target Distribution.
DAYWEEKMONTH	Flag if specific day of week or month should be used (available on monthly scanning).
DELETED	Boolean value if this entry is marked as removed and should not be displayed.
DISABLEPROTOCOL	Flag regarding which process should be disabled during discovery.
DNSLOOKUP	Boolean flag if a DNS lookup should be performed on all targets that are added in case this schedule is in discovery mode.
EMPTYTARGETGROUP	Boolean value if the groupwhich we add targets t oshould be emptired prior to adding newly discovered targets.
FREQUENCY	The frequency of the scheduled time for this job.
FROMLDAP	Boolean flag if targets has been/shall be retrieved from a LDAP/AD server.
GROUPLIST	Comma separated list of granted groups for this account.
ICOUNT	The number of targets which will be scanned by this schedule.
LASTSCANDATE	When this schedule will no longer be re-schedule.
LATESTSCANDATE	When this schedule was scanned the latest time.
LATESTSCANDURATION	The duration of the latest scan.
LATESTSCANSTATUS	The latest scan status of this schedule.
MAXSCANTIME	The maximum amount of time allowed to scan this schedule.
NAME	The name of the schedule job.
NETBIOSLOOKUP	Boolean flag if a NetBIOS lookup should be performed on all targets that are added in case this schedule is in discovery mode.
NEXTSCANDATE	The next time this schedule will be executed.
OWNER	The owner of this schedule job (used when sending out notification).
SCANCOUNT	Deprecated
SCANLESS	Boolean flag if this schedule job should update daily.
SCANMODE	The mode of this schedule job (discovery, discovery/scan, scan).
SCANNERID	The scanner id which this target will be tested from.
SCANWINDOWDELAY	The delay between scan windows (in days).
SCANWINDOWS	The number of allowed scan windows for this schedule.
TARGETLIST	The target list as accepted by the graphical user interface.
TEMPLATEID	The scanning policy used by this schedule.
WAKEONLANDELAY	The delay before starting a scan against a target which has been woken up for testing.
XID	The unique identifier of the given object.
XSUBUSERXID	The unique identifier of sub account that has created this schedule (Please note that this field may not be present).

Remove Schedule

In order to remove a schedule job you need the unique identification number for that specific schedule job. This is retrived from the list of already defined schedule jobs ( See section: List Schedule).

Required keys
ACTION	REMOVESCHEDULEDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=REMOVESCHEDULEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Running Scan

In this section you can view the currently running scans and if required you can either pause ( and resume ) or stop any running scans.

List Running Scans

In order to see a list of currently running scans you shall supply the following information.

Required keys
ACTION	SCANSTATUSDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=SCANSTATUSDATA

Example response:

CODE

<RESPONSE>
   <STATUSLIST>
      <STATUS>
         <XID>2122465</XID>
         <XUSERXID>1000</XUSERXID>
         <XSUBUSERXID>1000</XSUBUSERXID>
         <XSOXID>1003</XSOXID>
         <SCANNERID>-1</SCANNERID>
         <SCANNERNAME>Local</SCANNERNAME>
         <REMOTEXID>6961</REMOTEXID>
         <COMPANY>Outpost24</COMPANY>
         <VCSERVICE>O</VCSERVICE>
         <VCPERCENT>10/15</VCPERCENT>
         <IPERCENTV>66</IPERCENTV>
         <ITHREADID>2122465</ITHREADID>
         <VCSTATUS>running</VCSTATUS>
         <VCSTATE>CAT_SCAN</VCSTATE>
         <BPAUSE>0</BPAUSE>
         <BSTOP>0</BSTOP>
         <VCJOBNAME>Test API</VCJOBNAME>
         <VCGNAME>lpattack15</VCGNAME>
         <IATTACKERID>15</IATTACKERID>
         <VCTARGET>91.216.32.140</VCTARGET>
         <XIPXID>1140</XIPXID>
         <ICOUNT>1</ICOUNT>
         <IVERIFY>0</IVERIFY>
         <DSCANSTARTED>2012-11-16 10:45</DSCANSTARTED>
         <DSCANSTART>2012-11-16 10:45</DSCANSTART>
         <DSCANEND>2012-11-16 22:45</DSCANEND>
         <XTEMPLATE>-2</XTEMPLATE>
         <XSCANJOBXID>7147</XSCANJOBXID>
         <TXSETTINGS/>
         <PROBEID>11fbf171</PROBEID>
         <SCANWINDOWS>1</SCANWINDOWS>
         <SCANWINDOWDELAY>1</SCANWINDOWDELAY>
         <RESUMING>0</RESUMING>
         <SCANSENT>0</SCANSENT>
         <TARGETTYPE>0</TARGETTYPE>
         <ISSTOPPED>0</ISSTOPPED>
         <ISPAUSED>0</ISPAUSED>
         <DBSCHEMA/>
         <SCANLESSREPORTXID>-1</SCANLESSREPORTXID>
         <SMARTFILTERING>1</SMARTFILTERING>
         <HOSTNAME>www.outpost24.com</HOSTNAME>
         <LOOKUP>0</LOOKUP>
         <SCANSCHEMA>scan</SCANSCHEMA>
         <WAKEONLAN/>
         <WAKEONLANDELAY>0</WAKEONLANDELAY>
         <FROMLDAP/>
      </STATUS>
   </STATUSLIST>
</RESPONSE>

Response key
BPAUSE	Boolean flag if the scan is marked as paused.
BSTOP	Boolean flag if the scan is marked as stopped.
COMPANY	The name of the company for this account
DBSCHEMA	Internal use only.
DSCANEND	Date and time information when the scan will terminate if not already finished.
DSCANSTART	Date and time information when the scan shall start.
DSCANSTARTED	Date and time information when the scan started.
FROMLDAP	Retrieve targets from the configured LDAP/AD server.
HOSTNAME	The FQDN of the host.
IATTACKERID	The internal attacker id which this scan is running from.
ICOUNT	The number of targets within this scan scope.
IPERCENTV	The percentage value of the progress of the scan.
ISPAUSED	Boolean flag if the scan is paused.
ISSTOPPED	Boolean flag if the scan is stopped.
ITHREADID	The thread identification number within the system. Used for performing actions upon specific scans.
IVERIFY	Boolean flag if the running scan is a verification scan.
LOOKUP	Boolean flag if any discovered targets will perform a lookup upon adding them to the system.
PDETECTTEMPLATE	The scan policy which will be used on scan started by a discovery/scan type of scan (Please note that this field may not be present).
PROBEID	The unique probe identification number.
REASON	The comment that will be used when adding targets to the system if the are detected (Please note that this field may not be present).
REMOTEXID	Internal use.
RESUMING	Boolean flag if this scan is resumed from a previously paused scan.
SCANLESSREPORTXID	The unique identifier of the report which is updated using the SLS feature.
SCANNERID	The scanner id which this target will be tested from.
SCANNERNAME	The name of the scanner where this action takes place.
SCANSCHEMA	Internal use.
SCANSENT	Boolean flag if the scan has been sent to the designated scanner.
SCANWINDOWDELAY	The delay between scan windows (in days).
SCANWINDOWS	The number of allowed scan windows for this schedule.
SMARTFILTERING	Boolean flag if the results will utilize smart filtering.
TARGETTYPE	The available types of targets: 0 : IP 1 : Host name 2 : NetBIOS name.
TEMPLATE	The scan policy utilized by this object (Please note that this field may not be present).
TXREPORT	Deprecated (Please note that this field may not be present).
TXSETTINGS	Text settings for this scan.
VCGNAME	Internal use.
VCJOBNAME	The name of the schedule job.
VCPERCENT	Text representation of the percentage value.
VCSERVICE	Should be set to W in order to only see Web Applications scan status.
VCSTATE	Current state of the scan.
VCSTATUS	Current status of the scan.
VCTARGET	Text representation of the target.
WAKEONLAN	Boolean flag if targets should woken up by the WOL feature.
WAKEONLANDELAY	The delay before targets will be scanned since the WOL request is sent.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XSCANJOBXID	The unique identifier of the scan job log object which contain all individual targets (entry with scan type set in the 20 range).
XSOXID	The unique identifier of the schedule object which contain the schedule preferences.
XSUBUSERXID	The unique identifier of sub user which this object is connected to.
XTEMPLATE	The unique identifier of the scan policy used by this object.
XUSERXID	The unique user id.

Start a Scan

In order to start a scan you need to supply the unique identification number for a specific schedule. This can retrived from the schedule list (See section: List schedule).

Required keys
ACTION	STARTSCAN
ONLYSCANNOW	Should be set to 1.
XID	The unique identiefier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ONLYSCANNOW=1&ACTION=STARTSCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Pause a Scan

In order to pause a currently running scan you need to supply the unique identification number for that specific scan. This can be retrived from the scan list (See section: List running scans).

Required keys
ACTION	PAUSESCAN
XID	The unique identifier orf the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ACTION=PAUSESCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Resume a Scan

In order to resume a currently paused scan you need to supply the unique identification number for that specific scan. This can be retrived from the scan list (See section: List running scans).

Required keys
ACTION	RESUMESCAN
XID	The unique identifier orf the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ACTION=RESUMESCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Stop a Scan

In order to stop a currently running scan you need to supply the unique identification number for that specific scan. This can be retrived from the scan list (See section: List running scans).

If you would like to stop all running scans then you should supply -1 as the XID value.

Required keys
ACTION	STOPSCAN
XID	The unique identifier orf the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ACTION=STOPSCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Manage Reports

Here you can see the result of a scan and also export the results to different formats (PDF, Excel and XML). This section will also provide information regarding additional tasks that can be performed on single entries, like for instance how to accept a reported risk in a report.

There are several actions that can be performed upon a single report entry, such as assign task, accept risk, perform verify scan and comment vulnerability.

The different report types that you can export are the following:

Delta report - Shows that has changed between the latest and the selected previous report. The information will contain added and removed findings a long with any newly opened or closed ports. This is very useful when you need to determine what has changed between two scanning occurrences.

Overview report - Shows in which vulnerability families you currently have you reported vulnerabilities.

Solution report - This will give you information regarding how many issues will be resolved by applying the unique solutions for the selected report. With this information it's really easy to determine where you have your quick wins that you can apply and drastically reduce your risk level with minimal workload.

Trend report - This will provide statistics for the number of high, medium and low risks over time for the selected target.

Report Selection

This section will guide you through the different requests that you are required to perform in order to retrieve a report. This will contain requests like how to retrieve the schedules, templates or plain lists or targets which are available in the report.

There are two different ways to retrieve the reports. These are:

From a group (list) - All targets currently defined in that group(s) will be used to present a report.
From a host (list) - Only the individual selected target(s) will be used to generate a report.

The above ways of retrieving the reports will be explain in the following section.

Report Target

This is the sectioin where you receive information about the actual finding for a specific target. With the use of the filtering and addional parameters that can be defined you have a very powerful way of extracting information from the system based on your requirements.

Required keys
ACTION	REPORTTARGETDATA
GROUPS	Comma separated list of groups which you would like to retrive the targets for.
TARGETS	Comma separated list of targets which you would like to retrive the target report target information for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?GROUPS=,-1,&ACTION=REPORTTARGETDATA&TARGETS=-1

Example reponse:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <XTEMPLATE>2</XTEMPLATE>
         <GLOBALTEMPLATE>1</GLOBALTEMPLATE>
         <VERIFIED>0</VERIFIED>
         <SCHEDULEJOB>Application server</SCHEDULEJOB>
         <CVSSSCORE>0.0</CVSSSCORE>
         <PCICVSSSCORE>0.0</PCICVSSSCORE>
         <DFIRSTSEEN>2009-11-05 12:00</DFIRSTSEEN>
         <DLASTSEEN>2009-11-05 12:00</DLASTSEEN>
         <DATE>2009-11-05 12:00</DATE>
         <XIPXID>87386</XIPXID>
         <VCTARGET>192.168.200.33</VCTARGET>
         <HOSTNAME>www.example.com</HOSTNAME>
         <IPORT>445</IPORT>
         <IPROTOCOL>6</IPROTOCOL>
         <XID>5800689</XID>
         <VCNAME>Port scanner</VCNAME>
         <VCVULNID>101010</VCVULNID>
         <BFALSEPOS>0</BFALSEPOS>
         <BNEW>1</BNEW>
         <BPCI>0</BPCI>
         <TYPE>Port</TYPE>
         <SERVICENAME>netbios-ssn</SERVICENAME>
         <IRISK>0</IRISK>
         <ORIGINALRISKLEVEL>-1</ORIGINALRISKLEVEL>
         <SCANNERNAME>Local</SCANNERNAME>
         <POTENTIALFALSE>0</POTENTIALFALSE>
         <CUSTOM0>SE</CUSTOM0>
         <CUSTOM1>1</CUSTOM1>
         <CUSTOM2>dalskdjlasjd</CUSTOM2>
         <CUSTOM3/>
         <CUSTOM4>London</CUSTOM4>
         <ACCEPTEDLENGTH>0</ACCEPTEDLENGTH>
         <ACCEPTED>0</ACCEPTED>
         <VCVHOST/>
         <TARGETTYPE>0</TARGETTYPE>
         <PLATFORM>ND</PLATFORM>
         <ASSIGNEE>Unassigned</ASSIGNEE>
         <ISADDED>0</ISADDED>
         <FINDINGDATE>2009-11-05 12:00</FINDINGDATE>
         <HASFPCOMMENT>0</HASFPCOMMENT>
         <AGE>1565.0</AGE>
         <HASEXPLOITS>0</HASEXPLOITS>
         <LIMITED>1</LIMITED>
      </REPORT>
   </REPORTLIST>
</RESPONSE>

Response keys
ACCEPTCOMMENT	Written comment that shall describe why the finding has been marked as an accepted risk (Please note that this field may not be present).
ACCEPTED	Boolean value if the report entry has been marked as an accepted risk.
ACCEPTEDLENGTH	For how many days was the entry accepted.
ACCEPTEXPIRES	The end date when the finding is no longer accepted automatically.
AGE	The number of days since the first occurrence of this specific finding.
ASSIGNEE	The user who is assigned to this specific entry.
BFALSEPOS	Boolean value if this entry is marked as a potential false positive.
BNEW	Boolean value if this finding wasn't reported on the previous report for this target.
BPCI	Boolean value if this finding is related to PCI.
CUSTOM0	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM1	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM2	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM3	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM4	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM5	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM6	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM7	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM8	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CUSTOM9	Custom attributed defined on either an user or a target (Please note that this field may not be present).
CVSSSCORE	The calculated CVSS score for this finding.
DATE	Report date and time.
DFIRSTSEEN	Date and time when this finding where first reported for this target and service.
DLASTSEEN	The date and time when this finding where seen the last time for this target and service.
FINDINGDATE	The date and time when this finding where either verified or updated from the SLS scanning.
GLOBALTEMPLATE	Name of the global template usedwhen performing the scan if any.
HASEXPLOITS	Boolean flag if the vulnerability has a known exploit.
HOSTNAME	The FQDN of the host.
IIPVAL	The calculated number of the target (if IPv4) (Please note that this field may not be present).
IPORT	The port where this issue has been detected.
IPROTOCOL	The protocol where this issue has been detected (See http://www.isi.edu/in-notes/iana/assignments/protocol-numbers).
IRISK	The risk value for this finding 0 : Information 1 : Low 2 : Medium. 4 : High
ISADDED	Boolean flag if this finding has been added since the last scan.
LIMITED	The presence of this field indicates that the response has been limited by the use of the "limit" parameter in the request.
ORIGINALRISKLEVEL	The original risk level if it has been changed.
PCICVSSSCORE	The calculated PCI CVSS score.
PLATFORM	The platform that has been detected upon this target.
POTENTIALFALSE	Boolean flag if this finding is a potential false positive.
SCANNERNAME	The name of the scanner where this action takes place.
SCHEDULEJOB	The name of the schedule job which where used when performing this scan.
SERVICENAME	The name of the service which where used when performing this scan.
TARGETTYPE	The available types of targets: 0 : IP 1 : Host name 2 : NetBIOS name
TYPE	What type of entry this is: 0 : Port 1 : Information 2 : Vulnerability
VCBUG	Bugtraq ID for this finding.
VCCVE	CVE ID for this finding.
VCFAMILY	The vulnerability family which this entry falls under.
VCNAME	The name of the vulnerability.
VCTARGET	Text representation of the target.
VCVHOST	The virtual host where this vulnerability has been detected.
VCVULNID	The unique vulnerability id for this entry.
VERIFIED	Boolean flag if this finding has been verified scanned.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XTEMPLATE	The unique identifier of the scan policy utilized by this object.

Report Template

Using predefined templates when retrieving reports allows you to use saved filters when selecting what should be present in the report.

How to define a template will not be covered by this documentation. This document will rather function as a guide to what the different values represent for your knowledge. It is only includded here in so that you can use it when selecting what the content should be in the report. When using a template you will only submit the filtering section to the backend.

Required keys

ACTION

REPORTTEMPLATEDATA

SCANTYPE

The type of scan which you would like to recieve the templates for.

Valid values:
0 : OUTSCAN or HIAB
1 : OUTSCAN PCI
2 : WAS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?SCANTYPE=0&ACTION=REPORTTEMPLATEDATA

Example reponse:

CODE

<RESPONSE>
   <REPORTTEMPLATES>
      <TEMPLATE>
         <XID>1059</XID>
         <XUSERXID>114</XUSERXID>
         <NAME>High risks - All targets</NAME>
         <ISPUBLIC>1</ISPUBLIC>
<STATE>o%3Acolumns%3Da%253Ao%25253Aid%25253Ds%2525253Aexpander%25255Ewidth%25253Dn%2525253A20
%255Eo%25253Aid%25253Ds%2525253Arfg_TARGET%25255Ewidth%25253Dn%2525253A100%255Eo%25253Aid%252
53Ds%2525253Arfg_HOSTNAME%25255Ewidth%25253Dn%2525253A100%25255Ehidden%25253Db%2525253A1%255E
o%25253Aid%25253Ds%2525253Arfg_DATE%25255Ewidth%25253Dn%2525253A120%255Eo%25253Aid%25253Ds%25
25253Arfg_VULNID%25255Ewidth%25253Dn%2525253A70%255Eo%25253Aid%25253Ds%2525253Arfg_NAME%25255
Ewidth%25253Dn%2525253A494%255Eo%25253Aid%25253Ds%2525253Arfg_HASEXPLOITS%25255Ewidth%25253Dn
%2525253A100%255Eo%25253Aid%25253Ds%2525253Arfg_TYPE%25255Ewidth%25253Dn%2525253A80%25255Ehid
den%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_CVSS%25255Ewidth%25253Dn%2525253A73%
255Eo%25253Aid%25253Ds%2525253Arfg_RISK%25255Ewidth%25253Dn%2525253A140%255Eo%25253Aid%25253D
s%2525253Arfg_PORT%25255Ewidth%25253Dn%2525253A50%255Eo%25253Aid%25253Ds%2525253Arfg_PROTOCOL
%25255Ewidth%25253Dn%2525253A50%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253
Arfg_CVE%25255Ewidth%25253Dn%2525253A100%255Eo%25253Aid%25253Ds%2525253Arfg_FAMILY%25255Ewidt
h%25253Dn%2525253A100%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_BUGTR
AQ%25255Ewidth%25253Dn%2525253A100%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525
253Arfg_ACCEPTED%25255Ewidth%25253Dn%2525253A70%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid
%25253Ds%2525253Arfg_ACCEPTEXPIRES%25255Ewidth%25253Dn%2525253A227%25255Ehidden%25253Db%25252
53A1%255Eo%25253Aid%25253Ds%2525253Arfg_BFALSEPOS%25255Ewidth%25253Dn%2525253A50%25255Ehidden
%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_BPOTENTIALFALSEPOS%25255Ewidth%25253Dn%
2525253A102%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_BNEW%25255Ewidt
h%25253Dn%2525253A50%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_VERIFI
ED%25255Ewidth%25253Dn%2525253A133%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525
253Aid_rfg0%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_DFIRSTSEEN%2525
5Ewidth%25253Dn%2525253A120%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg
_DLASTSEEN%25255Ewidth%25253Dn%2525253A120%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%2525
3Ds%2525253Arfg_PRODUCT%25255Ewidth%25253Dn%2525253A100%25255Ehidden%25253Db%2525253A1%255Eo%
25253Aid%25253Ds%2525253Arfg_VCVHOST%25255Ewidth%25253Dn%2525253A200%25255Ehidden%25253Db%252
5253A1%255Eo%25253Aid%25253Ds%2525253Arfg_PLATFORM%25255Ewidth%25253Dn%2525253A100%25255Ehidd
en%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_ASSIGNEE%25255Ewidth%25253Dn%2525253A
205%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_PCICOMPLIANCE%25255Ewid
th%25253Dn%2525253A70%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_FINDI
NGDATE%25255Ewidth%25253Dn%2525253A120%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%
2525253Arfg_ISADDED%25255Ewidth%25253Dn%2525253A50%25255Ehidden%25253Db%2525253A1%255Eo%25253
Aid%25253Ds%2525253Aid_rfg6%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg
_HASFPCOMMENT%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Arfg_AGE%25255Ewid
th%25253Dn%2525253A70%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Aid_rfg8%2
5255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Aid_rfg7%25255Ehidden%25253Db%252
5253A1%255Eo%25253Aid%25253Ds%2525253Aid_rfg4%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%2
5253Ds%2525253Aid_rfg1%25255Ehidden%25253Db%2525253A1%255Eo%25253Aid%25253Ds%2525253Aid_rfg2%
5Esort%3Do%253Afield%253Ds%25253AVCNAME%255Edirection%253Ds%25253AASC%255Ecolumn%253Ds%25253A
Name%5Efilters%3Do%253AIRISK%253Da%25253As%2525253A4%5Egrouping%3Ds%253AVCTARGET</STATE>
<SERVERFILTER>filter%5B0%5D%5Bfield%5D=IRISK&filter%5B0%5D%5Bdata%5D%5Btype%5D=list&f
ilter%5B0%5D%5Bdata%5D%5Bvalue%5D=4</SERVERFILTER>
         <TARGETS>-1</TARGETS>
         <TARGETGROUPS>,-1,</TARGETGROUPS>
         <OWNER>John Doe</OWNER>
         <SCANTYPE>0</SCANTYPE>
      </TEMPLATE>
   </REPORTTEMPLATES>
</RESPONSE>

Response keys
ISPUBLIC	Boolean flag if this template is publicly available to all your sub users.
NAME	Nema of the report template.
OWNER	The creator of this template.
SCANTYPE	The type of scan which you would like to receive the templates for. Valid values: 0 : OUTSCAN or HIAB 1 : OUTSCAN PCI 2 : WAS
SERVERFILTER	The filter for this template.
STATE	The filter used by the GUI to display this template.
TARGETGROUPS	The selected groups for this template.
TARGETS	The selected targets for this template.
XID	The unique identifier of the given object.
XUSERXID	The unique user id.

Report

In order to retrieve scanning results you need to supply the which targets and/or groups that you would like to receive them for. The targets and group cat either be single or multiple ones with the use of a comma separated list of their unique identification key. How to retrieve these identification keys are described in the Report selection section.

Retrive Report Entries

In order to retrieve scanning resultyou need to supply the following information.

Required keys
ACTION	REPORTTARGETDATA
GROUPS	Comma separated list of unique group identifiers to be included in the report.
TARGETS	Comma separated list of unique target identifiers to be included in the report.

Optional Keys

If based on a schedule object you should provide it's unique identification number in the following paramater.

Optional keys
SCANLOGXID	The unique scan log entry id for the schedule job which you would like to retrieve reports for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?GROUPS=,-1,&ACTION=REPORTTARGETDATA&TARGETS=-1

Example response:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <XTEMPLATE>2</XTEMPLATE>
         <GLOBALTEMPLATE>1</GLOBALTEMPLATE>
         <VERIFIED>0</VERIFIED>
         <SCHEDULEJOB>Application server</SCHEDULEJOB>
         <CVSSSCORE>0.0</CVSSSCORE>
         <PCICVSSSCORE>0.0</PCICVSSSCORE>
         <DFIRSTSEEN>2009-11-05 12:00</DFIRSTSEEN>
         <DLASTSEEN>2009-11-05 12:00</DLASTSEEN>
         <DATE>2009-11-05 12:00</DATE>
         <XIPXID>87386</XIPXID>
         <VCTARGET>192.168.200.33</VCTARGET>
         <HOSTNAME>www.example.com</HOSTNAME>
         <IPORT>445</IPORT>
         <IPROTOCOL>6</IPROTOCOL>
         <XID>5800689</XID>
         <VCNAME>Port scanner</VCNAME>
         <VCVULNID>101010</VCVULNID>
         <BFALSEPOS>0</BFALSEPOS>
         <BNEW>1</BNEW>
         <BPCI>0</BPCI>
         <TYPE>Port</TYPE>
         <SERVICENAME>netbios-ssn</SERVICENAME>
         <IRISK>0</IRISK>
         <ORIGINALRISKLEVEL>-1</ORIGINALRISKLEVEL>
         <SCANNERNAME>Local</SCANNERNAME>
         <POTENTIALFALSE>0</POTENTIALFALSE>
         <CUSTOM0>SE</CUSTOM0>
         <CUSTOM1>1</CUSTOM1>
         <CUSTOM2>dalskdjlasjd</CUSTOM2>
         <CUSTOM3/>
         <CUSTOM4>London</CUSTOM4>
         <ACCEPTEDLENGTH>0</ACCEPTEDLENGTH>
         <ACCEPTED>0</ACCEPTED>
         <VCVHOST/>
         <TARGETTYPE>0</TARGETTYPE>
         <PLATFORM>ND</PLATFORM>
         <ASSIGNEE>Unassigned</ASSIGNEE>
         <ISADDED>0</ISADDED>
         <FINDINGDATE>2009-11-05 12:00</FINDINGDATE>
         <HASFPCOMMENT>0</HASFPCOMMENT>
         <AGE>1565.0</AGE>
         <HASEXPLOITS>0</HASEXPLOITS>
         <LIMITED>1</LIMITED>
      </REPORT>
   </REPORTLIST>
</RESPONSE>

Response keys
ACCEPTCOMMENT	The comment given when this vulnerability was accepted (Please note that this field may not be present).
ACCEPTED	Boolean value if the vulnerability has been accepted.
ACCEPTEDLENGTH	The number of days the vulnerability has been accepted.
ACCEPTEXPIRES	The date when the vulnerability no longer is accepted.
AGE	The number of days since the first occurrence of this specific finding.
ASSIGNEE	The user who has a ticket assigned to him/her for this entry.
BFALSEPOS	Boolean value if this vulnerability is marked as a false positive or not.
BNEW	Boolean value if this finding wasn't reported on the previous report for this target.
BPCI	Boolean value if this report is a PCI report.
CUSTOM0	Custom attributed defined on either an user or a target.
CUSTOM1	Custom attributed defined on either an user or a target.
CUSTOM2	Custom attributed defined on either an user or a target.
CUSTOM3	Custom attributed defined on either an user or a target.
CUSTOM4	Custom attributed defined on either an user or a target.
CVSSSCORE	The CVSS score for this vulnerability.
DATE	The date and time when this scan was performed.
DFIRSTSEEN	The date and time when this finding was first detected on this host.
FINDINGDATE	The date and time when this finding was updated.
GLOBALTEMPLATE	The global template that was used if any.
HASEXPLOITS	Boolean flag if the vulnerability has a known exploit.
HASFPCOMMENT	Boolean flag if the target has false positive comments.
HOSTNAME	The FQDN of the host.
IPORT	The port where this vulnerability was detected upon.
IPROTOCOL	The protocol used when detecting this vulnerability.
IRISK	The risk level that this vulnerability is graded to. See appendix G.
ISADDED	Boolean value if this vulnerability has been added after the initial scan.
LIMITED	The presence of this field indicates that the response has been limited by the use of the `limit` parameter in the request.
ORIGINALRISKLEVEL	The original risk level for this vulnerability.
PCICVSSSCORE	The PCI CVSS score for this vulnerability ( Does not reflect DOS ).
PLATFORM	The detected platform for this vulnerability.
POTENTIALFALSE	Boolean value if this vulnerability are a potential false positive.
SCANNERNAME	The name of the scanner where this action takes place.
SCHEDULEJOB	The name of the schedule job which is associated with this entry.
SERVICENAME	The name of the service listening on this port and protocol.
TARGETTYPE	The available types of targets: 0 : IP 1 : Host name 2 : NetBIOS name.
TYPE	The entry report type.
VCBUG	The Bugtraq ID for this vulnerability.
VCCVE	The CVE reference for this vulnerability.
VCFAMILY	The family name of this vulnerability.
VCNAME	The name of this vulnerability.
VCTARGET	Text representation of the target.
VCVHOST	The virtual host name where this vulnerability was detected.
VCVULNID	The unique script identification number given to this vulnerability.
VERIFIED	Boolean value if this finding has been verified or not.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XTEMPLATE	The unique identifier of the scan policy utilized by this object.

Export Report

You can also export the report in a predefined format like PDF, Excel spreadsheet or into XML. In order to export a report you need to supply the selection criteria which where used to retrieve the report in the first place along with the next request.

Required keys
ACTION	EXPORTREPORT
FORMAT	Should be set to either PDF, XLS or XML.
LASTQUERY	The parameters used to retrive the report. This parameter should be URL encoded.
LENGTH	The length of the selected period.
PERIOD	The period that you would like to have the report for: 1 : Week 2 : Month 3 : Year
REPORTTYPE	The report type that you would like to extract. See Appendix I.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?REPORTTYPE=0&FORMAT=PDF&PERIOD=1&ACTION=EXPORTREPORT&LASTQUERY=start%3D0%26SCANLOGXID%3D101%26TARGET%3D101%26GROUPS%3D%252C-1%252C%26limit%3D50%26groupBy%3DVCTARGET%26ACTION%3DREPORTTARGETDATA%26sort%3DVCVULNID%26dir%3DDESC&groupBy=VCTARGET&REPORTTYPE=3&PERIOD=1&LENGTH=1&sort=VCVULNID&dir=DESC&LENGTH=1

The response will be in a binary format. This format is dependent on the given parameters in the request.

Report Actions

This section will describe additional actions that can be taken upon the reports. Accepted risk will allow you to add information on a specific finding where it clearly states that the finding is an accepted risk within your organization and when and for how long the finding is to be considered accepted. The accepted risk functionality can be set up to automatically accept new finding of the same type, so if the specific finding appears in another location it can be automatically accepted. During the accepted period that has been defined (or forever) the finding will automatically be marked as an accepted risk and contain the original comment.

Mark false positive should be used to send back feedback to the support team. It should not be used instead of the accepted risk feature since a false positive is something that has reported upon the wrong circumstances and not something that you don't think apply to your organization. If you think that it doesn't affect your organization or if you added compensating controls, then you should use the accepted risk and provide the reasoning within that comment. This will provide the report readers with the information that compensating controls are put into place and which person that supplied those details when.

Using the Verify functionality allows you to perform a scan against the target just using that single test. The verify function doesn't deduct any scans from your license so you are free to re-test if the remediation has resolved the reported issues.

The Comment vulnerability feature allow you to add information on a specific vulnerability that will also be present in the report.

Each finding can also be assigned to a specific user within the system. There is a built in ticketing system that should be used to track the remediation process.

Accept Risk

You can choose to accept a reported vulnerability by accepting the risk it will expose the company for.

Required keys
ACCEPTCOMMENT	The comment to be included in the report regarding why it has been accepted.
ACCEPTFORALLTARGETS	Boolean value if the risk should be accept on all targets which currently have this risk.
ACCEPTFOREEVER	Boolean value if the risk is accepted forever.
ACCEPTRISKADD	The number of days you accept the risk.
ACTION	ACCEPTRISK
XID	The unique identifier of the given object

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACCEPTFORALLTARGETS=0&ACCEPTCOMMENT=Test&XID=99&ACCEPTFOREEVER=0&ACCEPTFOREEVER=0&ACCEPTRISKADD=14&ACTION=ACCEPTRISK

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Mark False Positives

In order to mark a finding as a false positive you need the unique identifiction number for that specific report entry.

Required keys
ACTION	MARKFALSEPOSITIVE
INFORMATION	Text comment which will be available in conjunction with the false positive.
SENDINFO	Should be set to 1 if you would like to notify Outpost24 support department regarding this entry.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?INFORMATION=Test&XID =99&SENDINFO=off&ACTION=MARKFALSEPOSITIVE

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Verify

You can perform a verification scan of a specific finding. This will just perform the check for the specific vulnerability and the result will be present in the report afterwards. This can be done on all types of findings except the following : Port scanning entires and those that are of the family Web Application Scanner (WAS).

Required keys
ACTION	STARTVERIFYDATA
XID	The uniq identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=99&ACTION=STARTVERIFYDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Comment Vulnerability

You can add comments to vulerabilities in the report. This is done by suplying the following information.

Required keys
ACTION	UPDATESCRIPTDATA
COMMENT	The comment which should be associated with this vulnerability.
ISCOMMENT	Must be set to 1 or true in order to add a comment.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=99&COMMENT=Test&ACTION=UPDATESCRPTDATA&ISCOMMENT=0

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Removed Marked False Positive

In order to remove the reported false positive you can perform an update on that specific report entry and reset the Boolean value to zero.

Required keys
ACTION	UPDATEREPORTFINDINGDATA
BFALSEPOS	Boolean value which should be set to 0 in order to remove the false positive flag from this entry.
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=99&BFALSEPOS=0&ACTION=UPDATEREPORTFINDINGDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Assign Report Entry as Ticket

You can mark findings as a task for any of you sub user s to take action upon. In order to do that you need to supply the following information.

Required keys
ACTION	UPDATETICKETDATA
DUEDATE	The due date for this task.
ID	The task identification number. Should be set to NEW if you would like to create a new entry.
MESSAGE	The message which will be connected to this task.
MULTIPLE	Boolean value if the is regarding multiple entries or not.
NAME	The name of the task.
PRIORITY	The priority of this task. Value 1-5.
STATUS	The current status of the task.
TASKID	The task identification number. Should be set to -1 if you would like to created a new entry.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?DUEDATE=2013-04-08&MESSAGE=test&NAME=Test&PRIORITY=3&ID=New&TASKID=-1&STATUS=1&ACTION=UPDATETICKETDATA&MULTIPLE=&

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Report Types

This section will describe the other report types that can be extracted from the system.

Delta report:

This report will show you the differences between two selected reports (or previous). This is handy when you would like to see what has changed since the last time of scanning. It will display your changes both on the specific vulnerabilities and also any changes in the number of open ports. The changes are reported on the added or removed basis so it really easy to see what has been resolved (removed) and what needs to be prioritized (added).

Overview report:

The overview report will show you how the findings are distributed over vulnerability family and also upon which port you have the most reported issues.

Solution report:

This report will provide you with the "QUICK WINS", that is the "make me look good" list. It will provide the information where you gain the most risk reduction with least amount of work required. Instead of report based on the vulnerability it will display the findings based on their solution, so if updating to the latest version of a version would resolve multiple issues they will only have one entry in the solution report with the number of vulnerabilities that will be resolved by applying the required solution.

Trend report:

This report will give you a historical representation of how the number of high, medium and low risk has evolved during the selected trend period.

Delta Report

You can get a delta view over how the vunerabilities are changed during different periods.

Required keys
ACTION	REPORTDELTAREPORTS
GROUPS	The unique group identification number which you would like to get the delta for.
LENGTH	The number of periods.
PERIOD	1 = week 2 = month 3 = year
PORT	Boolean value if you would like to include delta information on the open/closed port with the response.
SCANLOGXID	The unique scan log identifier that you would like to get the delta view for.
STARTSCANXID	A scan log id wich you would like to compare the the selected report with.
TARGETS	The unique target identification number which you would like to get the delta for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?PORT=1&SCANLOGXID=&PERIOD=4&STARTSCANXID=1&GROUPS=,-1,&ACTION=REPORTDELTAREPORTS&LENGTH=30&TARGETS=-1

Example response:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <VCTARGET>192.168.200.2</VCTARGET>
         <IPADDRESS>192.168.200.2</IPADDRESS>
         <FIRSTREPORTDATE>2009-10-09 12:57</FIRSTREPORTDATE>
         <LASTREPORTDATE>2009-11-06 09:38</LASTREPORTDATE>
         <XID>1026608</XID>
         <XIPXID>87384</XIPXID>
         <SCANNERNAME>Local</SCANNERNAME>
         <ADDED>29</ADDED>
         <REMOVED>8</REMOVED>
         <UNCHANGED>20</UNCHANGED>
         <HIGH>0</HIGH>
         <MEDIUM>0</MEDIUM>
         <LOW>0</LOW>
      </REPORT>
   </REPORTLIST>
</RESPONSE>

Response keys
ADDED	The number of vulnerabilities which where added between the two dates.
FIRSTREPORTDATE	The first report date which is used in the comparison.
HIGH	Number of high risk.
IPADDRESS	The IP address which this delta is for.
LASTREPORTDATE	The last report date which is used in the comparison.
LOW	Number of low risks.
MEDIUM	Number of medium risks.
REMOVED	The number of vulnerabilities which where removed between the two dates.
SCANNERNAME	The name of the scanner where this action takes place.
UNCHANGED	The number of vulnerability which where unchanged between the two dates.
VCTARGET	Text representation of the target.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.

Overview Report

You can get an overview over how the vulnerabilities are distributed based on different criteria.

Required keys
ACTION	REPORTFINDINGSTAT
GROUPBY	Which overview you would like to have. Currently the following are available: VCFAMILY \| IRISK \| IPORT \| ACCEPTED
GROUPS	The unique group identification number which you would like to get the oveview for.
TARGETS	The unique target identification number which you would like to get the overview for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?GROUPS=-1&GROUPBY=VCFAMILY&ACTION=REPORTFINDINGSTAT&TARGETS=-1

Example response:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <VCFAMILY>ubuntu</VCFAMILY>
         <COUNT>41</COUNT>
      </REPORT>
   </REPORTLIST>
</RESPONSE>

Response keys
COUNT	The amount of vulnerabilities found for the selected overview.
VCFAMILY	The family name of the vulnerability.

Solution Report

You can get a solution view of your reported vulnerabilities.

Required keys
ACTION	REPORTSOLUTIONS
GROUPS	The unique group identification number which you would like to get the solutions for.
SCANLOGXID	The unique scan log identifier that you would like to get the solution view for.
TARGETS	The unique target identification number which you would like to get the solutions for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?SCANLOGXID=&GROUPS=,-1,&ACTION=REPORTSOLUTIONS&TARGETS=-1

Example response:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <SOLUTIONTYPE>2</SOLUTIONTYPE>
         <SOLUTIONPRODUCT>Microsoft SMB</SOLUTIONPRODUCT>
         <SOLUTIONTITLE>Restrict access to the SMB service</SOLUTIONTITLE>
         <SOLUTION>Restrict access to the SMB service</SOLUTION>
         <ORDERING>217926</ORDERING>
         <COUNT>2</COUNT>
         <TARGETCOUNT>1</TARGETCOUNT>
         <HIGHRISKS>2</HIGHRISKS>
         <MEDIUMRISKS>0</MEDIUMRISKS>
         <LOWRISKS>0</LOWRISKS>
      </REPORT>
   </REPORTLIST>
</RESPONSE>

Response keys
COUNT	The total number of vulnerabilities that has this solution.
HIGHRISKS	The number of high risks that this solution will resolve
LOWRISKS	The number of low risks that this solution will resolve.
MEDIUMRISKS	The number of medium risks that this solution will resolve
ORDERING	Internal use.
SOLUTION	The solution text that explaines that action needs to be taken to resolve the issue.
SOLUTIONPRODUCT	The product that the solution affects.
SOLUTIONTITLE	Short title regarding the solution.
SOLUTIONTYPE	The type of the solution. See XML API Interface Technical Document#Appendix_M
TARGETCOUNT	The number of targets that has this solution.

Trend Report

You can get a trend overview over how the vulnerabilities are distributed based on differentperiods.

Required keys
ACTION	REPORTTREND
GROUPS	The unique group identification number which you would like to get the trend for.
LENGTH	The number of the periods
PERIOD	1 = Week 2 = Month 3 = Year
TARGETS	The unique target identification number which you would like to get the trend for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?PERIOD=3&GROUPS=-1&ACTION=REPORTTREND&LENGTH=4&TARGETS=-1

Example response:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <DATE>2013-07-17 00:00</DATE>
         <LOWACCEPTED>0</LOWACCEPTED>
         <MEDIUMACCEPTED>0</MEDIUMACCEPTED>
         <HIGHACCEPTED>0</HIGHACCEPTED>
         <LOW>0</LOW>
         <MEDIUM>0</MEDIUM>
         <HIGH>0</HIGH>
         <ADDED>0</ADDED>
         <REMOVED>0</REMOVED>
         <OPENED>2</OPENED>
         <CLOSED>0</CLOSED>
         <ISCVSS>0.0</ISCVSS>
      </REPORT>
   </REPORTLIST>
</RESPONSE

Response keys
ADDED	The number of added findings.
CLOSED	The number of closed findings.
DATE	The date when this information was gathered.
HIGH	The number of high findings.
HIGHACCEPTED	The number of high findings which are accepted.
ISCVSS	The sum of all calculated CVSS scores added together.
LOW	The number of low findings.
LOWACCEPTED	The number of low findings which are accepted.
MEDIUM	The number of medium findings.
MEDIUMACCEPTED	The number of medium findings which are accepted.
OPENED	The number of opened ports.
REMOVED	The number of removed findings.

Report schedule

This section will describe how you can schedule reports to be automatically sent out to a defined recipient.

Multiple entries can be defined so different types of reports can be sent to the same recipient. The reports can also be defined to only contain specific host, groups or even using a report template (target selection and filtering combined).

On a HIAB it is also possible to transfer the file out to an external server using either FTP or SCP. Those options will be available once such servers have been defined in the maintenance section.

List Schedule Report

In order to see all the scheduled reports which has been added to the system on your profile you need to supply the details.

Required keys
ACTION	REPORTSCHEDULEDATA
SCANTYPE	The available scan types: 0 : OUTSCAN 1 : PCI 2 : WAS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?SCANTYPE=0&ACTION=REPORTSCHEDULEDATA

Example response:

CODE

<RESPONSE>
   <REPORTSCHEDULES>
      <SCHEDULE>
         <XID>1005</XID>
         <XUSERXID>114</XUSERXID>
         <NAME>MySchedule</NAME>
         <FREQUENCY>1</FREQUENCY>
         <LASTDATE>2011-04-30 00:00</LASTDATE>
         <LATESTDATE>2011-10-03 10:00</LATESTDATE>
         <DAYWEEKMONTH>0</DAYWEEKMONTH>
         <REPORTTYPE>3</REPORTTYPE>
         <PERIOD>2</PERIOD>
         <LENGTH>1</LENGTH>
         <FORMAT>7</FORMAT>
         <RECIPIENT>-1</RECIPIENT>
         <RECIPIENTEMAIL>securitygroup@mycompany.com</RECIPIENTEMAIL>
         <ENCRYPTIONKEY>df.key</ENCRYPTIONKEY>
         <TARGETGROUPS>,-1,</TARGETGROUPS>
         <SCANTYPE>0</SCANTYPE>
         <RECIPIENTTYPE>0</RECIPIENTTYPE>
         <OWNER>Daniel Fredriksson</OWNER>
         <INCLUDEHOSTINFO>1</INCLUDEHOSTINFO>
         <REPORTLEVEL>0</REPORTLEVEL>
      </SCHEDULE>
   </REPORTSCHEDULES>
</RESPONSE>

Reponse keys
DAYWEEKMONTH	Flag if specific day of week or month should be used (available on monthly scanning).
ENCRYPTIONKEY	Name of the encryption key which shall be used to encode the report.
FORMAT	Binary encoding of the format to be include.
FREQUENCY	The frequency of the scheduled time for this job.
INCLUDEHOSTINFO	Boolean flag if target information should be included in the exported report.
LASTDATE	The last date and time when the report was generated.
LATESTDATE	Run schedule until this given date.
LENGTH	The lenght of the given period.
NAME	The name of the report schedule.
OWNER	The owner of the object.
PERIOD	The period of the scheduled report. See Appendix B.
RECIPIENT	The unique idenfication number of the user who should receive the report. Set to -1 if custom email address are used.
RECIPIENTEMAIL	The custom email address if no recipient identification number is specified.
RECIPIENTETYPE	The type of reciepient: 0 : Email 1 : FTP - HIAB only 2 : SCP - HIAB only
REPORTLEVEL	The number of sub levels of the groups that will be included in the group report.
REPORTTEMPLATE	The report template to use when generating the report.
REPORTTYPE	The type of report to export. See Appendix I.
SCANTYPE	The available scan types: 0 : OUTSCAN 1 : PCI 2 : WAS
TARGETGROUPS	Comma separated list of target groups to be included in the report.
XID	The unique identifier of the given object.
XUSERXID	The unique user id.

Update Scheduled Report

You can schedule reports to be generated at a specific time.

Required keys
ACTION	UPDATEREPORTSCHEDULEDATA
NAME	Name of the schedule report.
RECIPIENT	The recipient of the report.
REPORTTYPE	The type of report to receive. See Appendix I.
SCANTYPE	The available scan types: 0 : OUTSCAN 1 : PCI 2 : WAS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?REPORTTYPE=1&NAME=Test&RECIPIENT=0&SCANTYPE=0&ACTION=UPDATEREPORTSCHEDULEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Remove Schedule Report

In order to remove a scheduled report you need the unique identification number for that specific report schedule. This is retrieved from the list of already defined report schedules ( See section : List Schedule Report).

Required keys
ACTION	REMOVEREPORTSCHEDULEDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=1754&ACTION=REMOVEREPORTSCHEDULEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Manage Tickets

In the system you can create custom and report specific tickets to be assigned to any of your defined users. The tickets can be defined to automatically become generated and assigned from within the event system. There is also an option to define an escalation rule for each individual user in case a due date has been exceeded.

List Tickets

You can retrieve a list of tickets by supplying the following information.

Required keys
ACTION	TICKETDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=TICKETDATA

Example response:

CODE

<RESPONSE>
   <TICKETLIST>
      <TICKET>
         <XID>1821</XID>
         <TYPE>6</TYPE>
         <DUEDATE>2009-07-01 00:00</DUEDATE>
         <PRIORITY>1</PRIORITY>
         <STATUS>1</STATUS>
         <SCRIPTID>-1</SCRIPTID>
         <SCRIPTNAME/>
         <NAME>My First Ticket</NAME>
         <TASKID>100</TASKID>
         <ASSIGNEE>Daniel Fredriksson</ASSIGNEE>
         <WASFINDING>0</WASFINDING>
         <PCIFINDING>0</PCIFINDING>
         <SCHEDULEOBJECTNAME/>
         <VERIFIED>0</VERIFIED>
      </TICKET>
   </TICKETLIST>
</RESPONSE>

Response key
ASSIGNEE	The assigned user of this task.
DREPORTDATE	The report date and time which this task is regarding.
DUEDATE	The due date of this task.
IPADDRESS	The IP address of the target which this task is concerning.
IPORT	The port of the finding of which this task is concerning.
IPROTOCOL	The protocol of the finding.
NAME	The name of the task.
PCIFINDING	Boolean value if this is regarding a PCI finding.
PORT	A text description of the port of which this task is concerning.
PRIORITY	The task priority (1-5)
PROTOCOL	A text decription of the protocol.
REPORTXID	Internal use.
SCHEDULEOBJECTNAME	The schedule name conerning this task
SCHEDULEOBJECTXID	The unique schedule id conerning this task
SCRIPTID	The vulnerability script id which this task is conerning.
SCRIPTNAME	The vulnerability name.
STATUS	Current status of this task.
TARGETTYPE	The available types of targets: 0 : IP 1 : Host name 2 : NetBIOS name.
TASKID	The unique identificatioin number of this task.
TYPE	The type of task: 0 : Single entry 1 : Whole report
VCVULNID	The vulnerability script id which this task is conerning.
VERIFIED	Boolean value if this finding has been verified or not.
VIRTUALHOST	The virtual hosts for this target.
WASFINDING	Boolean flag if this task concerns a Web Application Scan.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XSUBUSERXID	The unique identifier of sub user which this object is connected to.

Update Ticket

In order to create a ticket you have to supply the following information.

Required keys
ACTION	UPDATETICKETDATA
DUEDATE	The due date for this task.
ID	The task idenfication number. Should be set to NEW if you would like to create a new entry.
MESSAGE	The message which will be connected to this task.
MULTIPLE	Boolean value if the task is regarding multiple entries or not.
NAME	The name of the task.
PRIORITY	The priotity of this task. Value 1-5
STATUS	The current status of this task.
TASKID	The taskidentification number. Shoiuld be set to -1 if you would like to create a new entry.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?DUEDATE=2019-04-08&MESSAGE=test&NAME=Test&PRIORITY=3&ID=New&TASKID=-1&STATUS=1&ACTION=UPDATETICKETDATA&MULTIPLE=&

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Remove Ticket

If you are the main account holder the you can actually remove a ticket from the system. Please note that this isn't possible by any other user. In order to remove a ticket you need to supply the following information.

Required keys
ACTION	REMOVETICKETDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=9326&ACTION=REMOVETICKETDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Manage Audit

Here you can retrieve a list of some actions which has been taken place in the system by the defined users so that you can see who did what and when.

This might be a requirement from your auditor but can come in handy when it comes to tracking changes within the system.

Please note that this information is only retained for 1 year. If longer storage is required, you are required to manually download and store this information in a remote system on an annual basis.

View Audit History

You can retrive a list of some actions which has been taken place in the system by the defined users so that you can see how did what and when.

Required keys
ACTION	AUDITDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=AUDITDATA

Example response:

CODE

<RESPONSE>
   <AUDITLIST>
      <AUDIT>
         <XID>1185216</XID>
         <XXID>4710</XXID>
         <NAME>Api Api</NAME>
         <XVCAPP>tSubUserS</XVCAPP>
         <IMODE>1</IMODE>
         <TXCUSTOM/>
         <XTIME>2014-02-18 08:59</XTIME>
         <VCFIRSTNAME>Api</VCFIRSTNAME>
         <VCLASTNAME>Api</VCLASTNAME>
         <LIMITED>1</LIMITED>
      </AUDIT>
   </AUDITLIST>
</RESPONSE>

Response keys
IMODE	0 = Added 1 = Updated 2 = Deleted 3 = Login 4 = Log out
LIMITED	The presence of this field indicates that the response has been limited by the use of the "limit" parameter in the request.
NAME	The full name on the account that performed the action.
TXCUSTOM	Additional details of the modification.
VCFIRSTNAME	The first name of the user.
VCLASTNAME	The surmane of the user.
XID	The unique identifier of the given object.
XTIME	The data and time when the action was performed.
XVCAPP	The application which the audit log entry is concerning. See Appendix N.
XXID	The unique identification number for the entry which this log is about.

Export Audit History

The audit log can also be exported from the system. This request will result in a binary file being provided of the XLS format.

Required keys
ACTION	EXPORTAUDIT

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=EXPORTAUDIT

The response will be in a binary format. This format is dependent on the given parameters in the request.

Manage Events

The event notifications area allows for actions to be performed upon certain events. These actions can be sent out over SNMP, syslog or email.

Please see Appendix N for a complete list of all possible actions.

List Event Notifications

In order to list the defined event notifications which are present in the system you need to supply the following information.

Required keys
ACTION	LOGGINGDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=LOGGINGDATA

Example response:

CODE

<RESPONSE>
   <LOGLIST>
      <LOG>
         <XID>19678</XID>
         <XUSERXID>114</XUSERXID>
         <XREFID>20</XREFID>
         <ITYPE>3</ITYPE>
         <RECIPIENT>df@outpost24.com</RECIPIENT>
         <TARGETLIST/>
         <TARGETGROUPLIST/>
         <MYSCANS>1</MYSCANS>
         <NEWFINDINGS>1</NEWFINDINGS>
         <SCANFORMAT>0</SCANFORMAT>
         <ATTACHREPORT>0</ATTACHREPORT>
         <REPORTTYPE>0</REPORTTYPE>
         <SCANTYPE>7</SCANTYPE>
         <TARGETINFORMATION>1</TARGETINFORMATION>
      </LOG>
   </LOGLIST>
</RESPONSE>

Response keys
ASSIGNEE	The user which is assigned the ticket (Please note that this field may not be present).
ATTACHREPORT	Boolean value if the report should be attached to the email if selected.
ENCRYPTIONKEY	The encryption key that will be used to encrypt any attached report (Please note that this field may not be present).
EVENTNAME	The name of the notification event (Please note that this field may not be present).
ITYPE	The event type: 1 : Syslog 2 : SNMP 3 : Email 4 : SMS 5 : Ticket
MYSCANS	Boolean value if this should only be for scans which the user has scheduled.
NEWFINDINGS	Boolean value if this event is only for new findings.
RECIPIENT	Email address where the event will be sent to (Please note that this field may not be present).
REPORTTYPE	The report type that will be attached to the event notfication. See Appendix I.
SCANFORMAT	The additional information format that should be included in the event.
SCANTYPE	The available scan types: 0 : OUTSCAN 1 : PCI 2 : WAS
TARGETGROUPLIST	For which target groups that this notification will take place.
TARGETINFORMATION	Boolean value if additional target information should be included in the notification.
TARGETLIST	The target list as accepted by the graphical user interface.
TICKETPRIORITY	The priority that will be set for the assigned task if defined (Please note that this field may not be present).
XASSIGNEE	The full name of the user which is assigned task if defined (Please note that this field may not be present).
XID	The unique identifier of the given object.
XREFID	See Appendix N.
XUSERXID	The unique user id.

Update Event Notification

In order to add an event notification you need to supply the following information.

Required keys
ACTION	UPDATELOGGINGDATA
ITYPE	1 : Syslog 2 : SNMP 3 : Email 4 : SMS 5 : Ticket
RECIPIENT	The recipient of the event
XREFID	See Appendix N.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XREFID=11&RECIPIENT=test@example.com&ITYPE=3&ACTION=UPDATELOGGINGDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Remove Event Notification

In order to remove any event notification you need to supply the unique identification number for that specific event.

Required keys
ACTION	REMOVELOGGINGDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=26903&ACTION=REMOVELOGGINGDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Manage Dashboard.

The dash board gives a quick overview of the status of your network. It holds modules that gives information about various aspects of the targets and their risks.

Top Groups

Shows the groups with the most vulnerabilities.

Required keys
ACTION	DASHBOARD_TOPGROUPS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_TOPGROUPS

Example response:

CODE

<RESPONSE>
   <TOPGROUPS>
      <STAT>
         <XID>21077</XID>
         <NAME>Risk</NAME>
         <XIPARENTID>19923</XIPARENTID>
         <XPATHUP>21077,19923</XPATHUP>
         <COUNT>104</COUNT>
         <RULEBASED>0</RULEBASED>
         <REPORTBASED>0</REPORTBASED>
         <HASCHILDNODES>1</HASCHILDNODES>
         <PATH>Report Groups / Risk</PATH>
         <POSITION>1</POSITION>
      </STAT>
   </TOPGROUPS>
</RESPONSE>

Response keys
COUNT	The number of vulnerabilities present in this group.
HASCHILDNODES	Boolean value if this group has any child nodes.
NAME	The name of the group.
PATH	The group path.
POSITION	The position in the path.
REPORTBASED	Boolean value if the group is based on a Reporting group.
RULEBASED	Boolean value if the group is based on a Dynamic group.
XID	The unique identifier of the given object.
XIPARENTID	The unique id for anyparent object for this object within the system.
XPATHUP	Internal use only.

Top Ports

Shows the ports with most vulnerabilities.

Required keys
ACTION	DASHBOARD_TOPPORTS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_TOPPORTS

Example response:

CODE

<RESPONSE>
   <TOPPORTS>
      <STAT>
         <PORT>445</PORT>
         <COUNT>95</COUNT>
      </STAT>
   </TOPPORTS>
</RESPONSE>

Response keys
COUNT	The number of open ports
PORT	The port number

Top Applications

Shows the applications found that has most vulnerabilities in the specified target group.

Required keys
ACTION	DASHBOARD_TOPAPPS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_TOPAPPS

Example response:

CODE

<RESPONSE>
  <RESPONSE/>
</RESPONSE>

Response keys

Risk Summary

Display how many targets that have high, medium, and low risk.

Required keys
ACTION	DASHBOARD_RISKSUMMARY

Optional Keys

The risk summary can also be extracted for a specific group.

Optional keys
GROUPXID	The group that you would like to receive the risk summary for. If omitted it will report all based on all targets.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_RISKSUMMARY

Example response:

CODE

<RESPONSE>
   <RISKCOUNT>
      <STAT>
         <HIGH>4</HIGH>
         <LOW>1</LOW>
         <MEDIUM>3</MEDIUM>
         <HIGHTREND>-2</HIGHTREND>
         <LOWTREND>0</LOWTREND>
         <MEDIUMTREND>-2</MEDIUMTREND>
         <TOTAL>9</TOTAL>
      </STAT>
   </RISKCOUNT>
</RESPONSE>>

Response keys
HIGH	The number of high risks.
HIGHTREND	The trend of high risks.
LOW	The number of low risks.
LOWTREND	The trend of low risks.
MEDIUM	The number of medium risks.
MEDIUMTREND	The trend of medium risks.
TOTAL	The total number of vulnerabilities on the selected group (or all targets it omitted).

Remediation Statistics

Shows how long it takes on average to re-mediate risks on the targets in the specified target.

Required keys
ACTION	DASHBOARD_REMEDIATIONSTATS
GROUPXID	The group that you would like to receive the risk summary for. If omitted it will report all based on all target.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?GROUPXID=-1&ACTION=DASHBOARD_REMEDIATIONSTATS

Example response:

CODE

<RESPONSE>
   <RISKCOUNT>
      <STAT>
         <DAY>2013-11-19 00:00</DAY>
         <DAYSHIGH>1674</DAYSHIGH>
         <DAYSMEDIUM>1708</DAYSMEDIUM>
         <DAYSLOW>1765</DAYSLOW>
      </STAT>
   </RISKCOUNT>
</RESPONSE>>

Response keys
DAY	The date for this statistics.
DAYSHIGH	The number of days it takes to resolve a high risk vulnerability.
DAYSLOW	The number of days it takes to resolve a low risk vulnerability.
DAYSMEDIUM	The number of days it takes to resolve a medium risk vulnerability.

Top Platforms

Shows the platform distribution found that has most vulnerabilities in the specified target group.

Required keys
ACTION	DASHBOARD_TOPPLATFORMS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_TOPPLATFORMS

Example response:

CODE

<RESPONSE>
  <RESPONSE/>
</RESPONSE>

Response keys

Top Targets

Shows the targets with most vulnerabilities in the specified target group.

Required keys
ACTION	DASHBOARD_TOPTARGETS

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_TOPTARGETS

Example response:

CODE

<RESPONSE>
   <TOPTARGETS>
      <STAT>
         <XID>87384</XID>
         <NAME>192.168.200.2</NAME>
         <COUNT>88</COUNT>
      </STAT>
   </TOPTARGETS>
</RESPONSE>

Response keys
COUNT	The number of vulnerabilities present on the specific target.
NAME	The target name or IP.
XID	The unique identifier of the given object.

Top Vulnerabilities

Shows the platform distribution found that has most vulnerabilities in the specified target group.

Required keys
ACTION	DASHBOARD_TOPVULNERABILITIES

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=DASHBOARD_TOPVULNERABILITIES

Example response:

CODE

<RESPONSE>
   <TOPVULNERABILITIES>
      <STAT>
         <VCVULNID>205390</VCVULNID>
         <VCNAME>Mozilla Firefox file:// Directory Listing XSS Vulnerability</VCNAME>
         <COUNT>1</COUNT>
      </STAT>
   </TOPVULNERABILITIES>
</RESPONSE>

Response keys
COUNT	The number of occurences of this vulnerability.
VCNAME	Name of the vulnerability.
VCVULNID	The script id for the vulnerability.

Vulnerability Database

The vulnerability database lets you look at the vulnerability checks, and also see their descriptions and suggested solutions.

It is also possible to get the number of times a specific vulnerability has been detected within your network..

List Vulnerabilities

In order to list the vulnerabilities you need to supply the following information.

Required keys
ACTION	SCRIPTDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=SCRIPTDATA

Example response:

CODE

<RESPONSE>
   <SCRIPTLIST>
      <SCRIPT>
         <XID>100018</XID>
         <VCNAME>RPC Portmapper</VCNAME>
         <VCFAM>rpc</VCFAM>
         <IRISK>0</IRISK>
         <ICVSS>0</ICVSS>
         <VCCVE>CVE-1999-0632</VCCVE>
         <VCCVSSVECTOR>(AV:N/AC:L/Au:N/C:N/I:N/A:N)</VCCVSSVECTOR>
         <VCBUG>No bugtraq</VCBUG>
         <SCRIPTCREATED>2007-04-04 00:00</SCRIPTCREATED>
         <CVSS_SCORE>0.0</CVSS_SCORE>
         <HASEXPLOITS>0</HASEXPLOITS>
         <LIMITED>1</LIMITED>
      </SCRIPT>
   </SCRIPTLIST>
</RESPONSE>

Response keys
CVSS_SCORE	The CVSS score for this vulnerability.
HASEXPLOITS	Boolean flag if the vulnerability has a known exploit.
ICVSS	The calculated CVSS number for this vulnerability. Divide it by 10 to get the correct number.
IRISK	The risk level that this vulnerability is graded to. See Appendix J.
LIMITED	The presence of this field indicates that the response has been limited by the use of the `limit`. parameter in the request.
SCRIPTCREATED	The date when this script was created.
VCBUG	The Bugtraq ID for this vulnerability.
VCCVE	The CVE reference for this vulnerability.
VCCVSSVECTOR	The CVE vector for this vulnerability.
VCFAM	The family that this vulnerability belongs to.
VCNAME	The name of this vulnerability.
XID	The unique identifier of the given object.

Extended Script Information

If you supply the script identification you can get additional information like description and solutions for a specific vulnerability.

Required keys
ACTION	SCRIPTDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=289428&ACTION=SCRIPTDATA

Example response:

CODE

<RESPONSE>
   <SCRIPTLIST>
      <SCRIPT>
         <XID>289428</XID>
         <VCNAME>Sun JRE: TLS / DTLS Protocol CBC-mode Ciphersuite Timing Analysis Plaintext Recovery Cryptanalysis Attack</VCNAME>
         <VCFAM>sun</VCFAM>
         <IRISK>2</IRISK>
         <VCCVE>CVE-2013-0169</VCCVE>
         <VCBUG>No bugtraq</VCBUG>
         <ICVSS>26</ICVSS>
         <VCCVSSVECTOR>(AV:N/AC:H/Au:N/C:P/I:N/A:N)</VCCVSSVECTOR>
         <CDESC>The TLS protocol 1.1 and 1.2 and the DTLS protocol 1.0 and 1.2, as used in OpenSSL, OpenJRE, PolarSSL, and other products, do not properly consider timing sidechannel attacks on a MAC check requirement during the processing of malformed CBC padding, which allows remote attackers to conduct distinguishing attacks and plaintext-recovery attacks via statistical analysis of timing data for crafted packets, aka the "Lucky Thirteen"
issue.</CDESC>
         <CSOL>Upgrade to version 1.7.0_45 or later of Sun JRE.</CSOL>
         <CVSS_SCORE>2.6</CVSS_SCORE>
         <SOLUTIONTYPE>6</SOLUTIONTYPE>
         <SOLUTIONPRODUCT>Sun JRE</SOLUTIONPRODUCT>
         <SOLUTIONTITLE>Upgrade to version 1.7.0_45 or later of Sun JRE</SOLUTIONTITLE>
         <HASEXPLOITS>0</HASEXPLOITS>
         <FINDINGCOUNT>0</FINDINGCOUNT>
      </SCRIPT>
   </SCRIPTLIST>
</RESPONSE>

Response keys
CDESC	The description for this vulnerability.
CSOL	The solution for this vulnerability.
CVSS_SCORE	The CVSS score for this vulnerability.
FINDINGCOUNT	The number of occurences of this vulnerability in your system.
HASEXPLOITS	Boolean flag if the vulnerability has a known exploit.
ICVSS	The calculated CVSS number for this vulnerability. Divide it by 10 to get the correct number.
IRISK	The risk level that this vulnerability is graded to. See Appendix J.
SOLUTIONPRODUCT	The solution product.
SOLUTIONTITLE	Short title regarding the solution .
SOLUTIONTYPE	The solution type. See XML API Interface Technical Document#Appendix_M
VCBUG	The Bugtraq ID for this vulnerability.
VCCVE	The CVE reference for this vulnerability.
VCCVSSVECTOR	The CVE vector for this vulnerability.
VCFAM	The family that this vulnerability belongs to.
VCNAME	The name of this vulnerability.
XID	The unique identifier of the given object.

Web Application Scanner

The web application scanner is used to detect vulnerabilities on the web server such as cross site scripting and SQL injection.

If you have the full version you can also detect the following vulnerability types:

XSS Element
XSS Attribute
XSS Header
SQL Injection
Remote File Include
Local File Include
Code Injection
Command Injection
Format String
CRLF Injection
Cross Site Request Forgery

Scope

The web application scanning is defined as a scope which includes the information about which links to follow and which IP:s we are allowed to follow during the crawling phase.

In the scope you can also define white-list, black-list and IP range which are used by the host name (if it's load balanced). There are also possible to define different authentication procedures, required cookies, fixed parameter values, user agent and HTTP refer.

Update Scheduled Scope

In order to add a web application scope you need to supply the following information.

Required keys
ACTION	WASUPDATESCHEDULEDATA
MAXIMUMLINKS	The maximum number of links that the crawler will follow during the detect phase.
NAME	The name of the Web Application Scanning schedule scope.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?NAME=RemoveMe&ACTION=WASUPDATESCHEDULEDATA&MAXIMUMLINKS=20

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Scheduled Scopes

In order to alist the vulnerabilities you need to supply the following information.

Required keys
ACTION	WASSCHEDULEDATA

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=WASSCHEDULEDATA

Example response:

CODE

<RESPONSE>
   <SCHEDULELIST>
      <SCHEDULE>
         <XID>1745084</XID>
         <XUSERXID>114</XUSERXID>
         <XSUBUSERXID>-1</XSUBUSERXID>
         <MAXSCANTIME>6</MAXSCANTIME>
         <NAME>TestSchedule</NAME>
         <SCANWINDOWS>2</SCANWINDOWS>
         <SCANWINDOWDELAY>1</SCANWINDOWDELAY>
         <LATESTSCANSTATUS>24</LATESTSCANSTATUS>
         <LATESTSCANDATE>2012-05-04 08:51</LATESTSCANDATE>
         <URILIST>http://www.outpost24.com/demo</URILIST>
         <URIBLACKLIST>www.outpost24.com/blacklisted</URIBLACKLIST>
         <URIWHITELIST>www.outpost24.com/</URIWHITELIST>
         <MAXIMUMLINKS>2000</MAXIMUMLINKS>
         <REQUESTDELAY>0</REQUESTDELAY>
         <TRANSFERTIMEOUT>20000</TRANSFERTIMEOUT>
         <EVENTTIMEOUT>0</EVENTTIMEOUT>
         <XSSREFLECTED>1</XSSREFLECTED>
         <XSSPERSISTENT>1</XSSPERSISTENT>
         <CONTENTANALYSIS>1</CONTENTANALYSIS>
         <SQLINJECTION>1</SQLINJECTION>
         <TIMESQLINJECTION>0</TIMESQLINJECTION>
         <REMOTEFILEINCLUDE>1</REMOTEFILEINCLUDE>
         <LOCALFILEINCLUDE>1</LOCALFILEINCLUDE>
         <CODEINJECTION>1</CODEINJECTION>
         <COMMANDINJECTION>1</COMMANDINJECTION>
         <FORMATSTRING>1</FORMATSTRING>
         <CRLFINJECTION>1</CRLFINJECTION>
         <UNVALIDATEDREDIRECT>1</UNVALIDATEDREDIRECT>
         <ENABLEAJAX>0</ENABLEAJAX>
         <SCANNERID>0</SCANNERID>
         <SCANNERNAME>Local</SCANNERNAME>
         <ISWAS>1</ISWAS>
         <DISCOVERYMODE>1</DISCOVERYMODE>
         <DAYWEEKMONTH>0</DAYWEEKMONTH>
         <FREQUENCY>10</FREQUENCY>
         <OWNER>Daniel Fredriksson</OWNER>
         <LATESTSCANDURATION>00:01:00</LATESTSCANDURATION>
         <AVERAGESCANDURATION>00:01:00</AVERAGESCANDURATION>
         <DELETED>0</DELETED>
      </SCHEDULE>
   </SCHEDULELIST>
</RESPONSE>

Response keys
AVERAGESCANDURATION	The average scan time.
CODEINJECTION	Boolean value if the test shall include code injection checks.
COMMANDINJECTION	Boolean value if the test shall include command injection checks.
CONTENTANALYSIS	Boolean value if the test shall include content analysis checks.
CRLFINJECTION	Boolean value if the test shall include CRLF injection checks.
DAYWEEKMONTH	Flag if specific day of week or month should be used (available on monthly scanning).
DELETED	Boolean value if this entry is marked as removed and should not be displayed.
DISCOVERYMODE	Boolean value if the scan only shall include the crawler part and not send any spikes to the target host.
ENABLEAJAX	Boolean value if the scan shall parse JavaScript and try to enumerate additional links.
EVENTTIMEOUT	The timeout in seconds before the web application scanner no longer waits for an event to be processed.
FORMATSTRING	Boolean value if the scan shall include format string injection checks.
FREQUENCY	The frequency of the scheduled time for this job.
ISWAS	Boolean flag which specifies that this schedule is a Web Application Scan instead of a normal one.
LATESTSCANDATE	When this schedule was scanned the latest time.
LATESTSCANDURATION	The duration of the latest scan.
LATESTSCANSTATUS	The latest scan status of this schedule.
LOCALFILEINCLUDE	Boolean value if the test shall include local file include injection chacks.
MAXIMUMLINKS	The maximum number of links that the scanner will follow (please note that on these links it may detect more URI's than the maximum number specified).
MAXSCANTIME	The maximum amount of time allowed to scan this schedule.
NAME	The name of the Web Application Scan scope schedule/definition.
OWNER	The owner of the object.
REMOTEFILEINCLUDE	Boolean value if the test shall include remote file include injection checks.
REQUESTDELAY	The delay in seconds between each request.
SCANNERID	The scanner id which this target will be tested from.
SCANNERNAME	The name of the scanner where this action takes place.
SCANWINDOWDELAY	The delay between scan windows (in days).
SCANWINDOWS	The number of allowed scan windows for this schedule.
SQLINJECTION	Boolean value if the test shall include SQL injection checks.
TIMESQLINJECTION	Boolean value if the test shall include timed SQL injection checks.
TRANSFERTIMEOUT	The transfer timeout before we continue to the next URI.
UNVALIDATEDREDIRECT	Boolean value if the test shall include checks for unvalidated URL redirects.
URIBLACKLIST	New line separated list of URI or sections of an URI of locations which the scanning isn't allowed to scan.
URILIST	New line separated list of URI's that the scanner will cover.
URIWHITELIST	New line separated list of the ONLY URI's that the scanner is allowed to cover.
WASCERTIFICATE	Certificate to use when performing web application scans.
XID	The unique identifier of the given object.
XSSPERSISTENT	Boolean value if the test shall include persistant XSS injection checks.
XSSREFLECTED	Boolean value if the test shall include reflected XSS injection checks.
XSUBUSERXID	The unique identifier of sub user which this object is connected to.
XUSERXID	The unique user id.

Delete Scheduled Scope

In order to remove a scope you need to supply the unique identification number for that specific scope.

Required keys
ACTION	WASREMOVESCHEDULEDATA
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=174661&ACTION=WASREMOVESCHEDULEDATA

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

List Running Scans

It is possible to see the current status of the currently running scans. These can also be paused, resumed or stopped. When a scan is stopped, please allow some time for it to finish gracefully. The scanner will try to terminate it as quickly as possible.

List Running Scans

In order to see a list of currently running scans you shall supply the following information.

Required keys
ACTION	SCANSTATUSDATA
VCSERVICE	Should be set to W in order to only see Web Applications scan status.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?VCSERVICE=W&ACTION=SCANSTATUSDATA

Example response:

CODE

<RESPONSE>
   <STATUSLIST>
      <STATUS>
         <XID>2122465</XID>
         <XUSERXID>1000</XUSERXID>
         <XSUBUSERXID>1000</XSUBUSERXID>
         <XSOXID>1003</XSOXID>
         <SCANNERID>-1</SCANNERID>
         <SCANNERNAME>Local</SCANNERNAME>
         <REMOTEXID>6961</REMOTEXID>
         <COMPANY>Outpost24</COMPANY>
         <VCSERVICE>O</VCSERVICE>
         <VCPERCENT>10/15</VCPERCENT>
         <IPERCENTV>66</IPERCENTV>
         <ITHREADID>2122465</ITHREADID>
         <VCSTATUS>running</VCSTATUS>
         <VCSTATE>CAT_SCAN</VCSTATE>
         <BPAUSE>0</BPAUSE>
         <BSTOP>0</BSTOP>
         <VCJOBNAME>Test API</VCJOBNAME>
         <VCGNAME>lpattack15</VCGNAME>
         <IATTACKERID>15</IATTACKERID>
         <VCTARGET>91.216.32.140</VCTARGET>
         <XIPXID>1140</XIPXID>
         <ICOUNT>1</ICOUNT>
         <IVERIFY>0</IVERIFY>
         <DSCANSTARTED>2012-11-16 10:45</DSCANSTARTED>
         <DSCANSTART>2012-11-16 10:45</DSCANSTART>
         <DSCANEND>2012-11-16 22:45</DSCANEND>
         <XTEMPLATE>-2</XTEMPLATE>
         <XSCANJOBXID>7147</XSCANJOBXID>
         <TXSETTINGS/>
         <PROBEID>11fbf171</PROBEID>
         <SCANWINDOWS>1</SCANWINDOWS>
         <SCANWINDOWDELAY>1</SCANWINDOWDELAY>
         <RESUMING>0</RESUMING>
         <SCANSENT>0</SCANSENT>
         <TARGETTYPE>0</TARGETTYPE>
         <ISSTOPPED>0</ISSTOPPED>
         <ISPAUSED>0</ISPAUSED>
         <DBSCHEMA/>
         <SCANLESSREPORTXID>-1</SCANLESSREPORTXID>
         <SMARTFILTERING>1</SMARTFILTERING>
         <HOSTNAME>www.outpost24.com</HOSTNAME>
         <LOOKUP>0</LOOKUP>
         <SCANSCHEMA>scan</SCANSCHEMA>
         <WAKEONLAN/>
         <WAKEONLANDELAY>0</WAKEONLANDELAY>
      </STATUS>
   </STATUSLIST>
</RESPONSE>

Response keys
BPAUSE	Boolean flag if the scan is marked as paused.
BSTOP	Boolean flag if the scan is marked as stopped.
COMPANY	The name of the comapny for this account.
DBSCHEMA	Internal use only.
DSCANEND	Date and time information when the scan will terminate if not already finished.
DSCANSTART	Date and time information when the scan shall start.
DSCANSTARTED	Date and time information when the scan started.
HOSTNAME	The FQDN of the host.
IATTACKERID	The internal attacker id which this scan is running from .
ICOUNT	The number of targets within this scan scope.
IPERCENTV	The percentage value of the progress of the scan.
ISPAUSED	Boolean flag if the scan is paused.
ISSTOPPED	Boolean flag if the scan is stopped.
ITHREADID	The thread identification number within the system. Used for performing actions upon specific scans.
IVERIFY	Boolean flag if the running scan is a verification scan.
LOOKUP	Boolean flag if any discovered targets will perform a lookup upon adding them to the system.
PDETECTTEMPLATE	The scan policy which will be used on scan started by a discovery/scan type of scan.
PROBEID	The unique probe identification number (Please note that this field may not be present).
REASON	The comment that will be used when adding targets to the system if the are detected (Please note that this field may not be present).
REMOTEXID	Internal use.
RESUMING	Boolean flag if this scan is resumed from a previosly paused scan.
SCANLESSREPORTXID	The unique identifier of the report which is updated using the SLS feature.
SCANNERID	The scanner id which this target will be tested from.
SCANNERNAME	The name of the scanner where this action takes place.
SCANSCHEMA	Internal use.
SCANSENT	Boolean flag if the scan has been sent to the designated scanner.
SCANWINDOWDELAY	The delay between scan windows (in days).
SCANWINDOWS	The number of allowed scan windows for this schedule.
SMARTFILTERING	Boolean flag if the results will utilize smart filtering.
TARGETTYPE	The available types of targets: 0 : IP 1 : Host name 2 : NetBIOS name.
TEMPLATE	The scan policy utilized by this object (Please note that this field may not be present).
TXREPORT	Deprecated (Please note that this field may not be present).
TXSETTINGS	Text settings for this scan.
VCGNAME	Internal use.
VCJOBNAME	The name of the schedule job.
VCPERCENT	Text representation of the percentage value.
VCSERVICE	Should be set to W in order to only see Web Applications scan status.
VCSTATE	Current state of the scan.
VCSTATUS	Current status of the scan.
VCTARGET	Text representation of the target.
WAKEONLAN	Boolean flag if targets should woken up by the WOL feature.
WAKEONLANDELAY	The delay before targets will be scanned since the WOL request is sent.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XSCANJOBXID	The unique identifier of the scan job log object which contain all individual targets (entry with scan type set in the 20 range).
XSOXID	The unique identifier of the schedule object which contain the schedule preferences.
XSUBUSERXID	The unique identifier of sub user which this object is connected to.
XTEMPLATE	The unique identifier of the scan policy utilized by this object.
XUSERXID	The unique user id.

Start a Scan

In order to start a scan you need to supply the unique identification number for a specific schedule. This can be retrieved from the schedule list ( See section : List Schedule ).

Required keys
ACTION	STARTSCAN
ONLYSCANNOW	Should be set to 1
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ONLYSCANNOW=1&ACTION=STARTSCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Pause a Scan

In order to pause a currently running scan you need to supply the unique identification number for that specific scan This can be retrived from the scan list ( See section : List Running Scans ).

Required keys
ACTION	PAUSESCAN
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ACTION=PAUSESCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Resume Scan

In order to resume a currently paused scan you need to supply the unique identification number for that specific scan This can be retrived from the scan list ( See section : List Running Scans ).

Required keys
ACTION	RESUMESCAN
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ACTION=RESUMESCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Stop Scan

In order to stop a currently running scan you need to supply the unique identification number for that specific scan This can be retrived from the scan list ( See section : List Running Scans ).

Required keys
ACTION	STOPSCAN
XID	The unique identifier of the given object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?XID=,13&ACTION=STOPSCAN

The above given request will generate a generic response.

More information about this response type is available in Appendix A.

Report Findings

Here you can see the result of a web application scan and also export the results to different formats. .

Retrieve Report Entries

In order to retrieve scanning results you need to supply the the following information.

Required keys
ACTION	REPORTTARGETDATA
GROUPS	Comma separated list of unique group identifiers to be included in the report.
TARGETS	Comma separated list of unique target identifiers to be included in the report.

Optional Keys

If based on a schedule object you should provide it's unique identification number in the following parameter.

Optional keys
SCANLOGXID	The unique scan log entry id for the schedule job which you would like to retrive reports for.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?GROUPS=,-1,&ACTION=REPORTTARGETDATA&TARGETS=-1

Example response:

CODE

<RESPONSE>
   <REPORTLIST>
      <REPORT>
         <XTEMPLATE>2</XTEMPLATE>
         <GLOBALTEMPLATE>1</GLOBALTEMPLATE>
         <VERIFIED>0</VERIFIED>
         <SCHEDULEJOB>Application server</SCHEDULEJOB>
         <CVSSSCORE>0.0</CVSSSCORE>
         <PCICVSSSCORE>0.0</PCICVSSSCORE>
         <DFIRSTSEEN>2009-11-05 12:00</DFIRSTSEEN>
         <DLASTSEEN>2009-11-05 12:00</DLASTSEEN>
         <DATE>2009-11-05 12:00</DATE>
         <XIPXID>87386</XIPXID>
         <VCTARGET>192.168.200.33</VCTARGET>
         <HOSTNAME>www.example.com</HOSTNAME>
         <IPORT>445</IPORT>
         <IPROTOCOL>6</IPROTOCOL>
         <XID>5800689</XID>
         <VCNAME>Port scanner</VCNAME>
         <VCVULNID>101010</VCVULNID>
         <BFALSEPOS>0</BFALSEPOS>
         <BNEW>1</BNEW>
         <BPCI>0</BPCI>
         <TYPE>Port</TYPE>
         <SERVICENAME>netbios-ssn</SERVICENAME>
         <IRISK>0</IRISK>
         <ORIGINALRISKLEVEL>-1</ORIGINALRISKLEVEL>
         <SCANNERNAME>Local</SCANNERNAME>
         <POTENTIALFALSE>0</POTENTIALFALSE>
         <CUSTOM0>SE</CUSTOM0>
         <CUSTOM1>1</CUSTOM1>
         <CUSTOM2>dalskdjlasjd</CUSTOM2>
         <CUSTOM3/>
         <CUSTOM4>London</CUSTOM4>
         <ACCEPTEDLENGTH>0</ACCEPTEDLENGTH>
         <ACCEPTED>0</ACCEPTED>
         <VCVHOST/>
         <TARGETTYPE>0</TARGETTYPE>
         <PLATFORM>ND</PLATFORM>
         <ASSIGNEE>Unassigned</ASSIGNEE>
         <ISADDED>0</ISADDED>
         <FINDINGDATE>2009-11-05 12:00</FINDINGDATE>
         <HASFPCOMMENT>0</HASFPCOMMENT>
         <AGE>1565.0</AGE>
         <HASEXPLOITS>0</HASEXPLOITS>
         <LIMITED>1</LIMITED>
      </REPORT>
   </REPORTLIST>
</RESPONSE>

Response keys
ACCEPTCOMMENT	The comment given when this vulnerability was accepted (Please note that this field may not be present).
ACCEPTED	Boolean value if the vulnerability has been accepted.
ACCEPTEDLENGTH	The number of days the vulnerability has been accepted.
AGE	The number of days since the first occurrence of this specific finding.
ASSIGNEE	The user who has a ticket assigned to him/her for this entry.
BFALSEPOS	Boolean value if this vulnerability is marked as a false positive or not.
BNEW	Boolean value if this finding wasn't reported on the previous report for this target.
BPCI	Boolean value if this report is a PCI report.
CUSTOM0	Custom attributed defined on either an user or a target.
CUSTOM1	Custom attributed defined on either an user or a target.
CUSTOM2	Custom attributed defined on either an user or a target.
CUSTOM3	Custom attributed defined on either an user or a target.
CUSTOM4	Custom attributed defined on either an user or a target.
CVSSSCORE	The CVSS score for this vulnerability.
DATE	The date and time when this scan was performed.
DFIRSTSEEN	The date and time when this finding was first detected on this host.
DLASTSEEN	The date and time when this finding was last seen on this host.
FINDINGDATE	The date and time when this finding was updated.
GLOBALTEMPLATE	The global template that was used if any.
HASEXPLOITS	Boolean flag if the vulnerability has a known exploit.
HASFPCOMMENT	Boolean flag if the target has false positive comments.
HOSTNAME	The FQDN of the host.
IPORT	The port where this vulnerability was detected upon.
IPROTOCOL	The protocol used when detecting this vulnerability.
IRISK	The risk level that this vulnerability is graded to. See appendix G.
ISADDED	Boolean value if this vulnerability has been added after the initial scan.
LIMITED	The presence of this field indicates that the response has been limited by the use of the "limit" parameter in the request.
ORIGINALRISKLEVEL	The original risk level for this vulnerability.
PCICVSSSCORE	The PCI CVSS score for this vulnerability ( Doesn't reflect DOS ).
PLATFORM	The detected platform for this vulnerability.
POTENTIALFALSE	Boolean value if this vulnerability are a potential false positive.
SCANNERNAME	The name of the scanner where this action takes place.
SCHEDULEJOB	The name of the schedule job which is associated with this entry.
SERVICENAME	The name of the service listening on this port and protocol.
TARGETTYPE	The available types of targets: 0 : IP 1 : Host name 2 : NetBIOS name.
TYPE	The entry report type.
VCNAME	The Bugtraq ID for this vulnerability.
VCTARGET	Text representation of the target.
VCVHOST	The virtual host name where this vulnerability was detected.
VCVULNID	The unique script identification number given to this vulnerability.
VERIFIED	Boolean value if this finding has been verified or not.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XTEMPLATE	The unique identifier of the scan policy utilized by this object.

Scan History

The scan history functions are the same as when you are viewing normal OUTSCAN or HIAB history. Please see earlier reference under Manage Schedule.

In order to see what has been executed in the past on your account you can retrieve a scan log which will contain the history of your scannings.

Required keys
ACTION	SCANLOG
WAS	Should be set to 1 in order to only see Web Application Scan log history

Optional Keys

The following parameters can be supplied in case of you would like to exclude specific entries from being retrieved.

Required keys
EXCLUDEEMPTY	Boolean value if empty scan logs should be included in the results.
ITYPE	The type of this entry, see Appendix C.
TEMPLATE	The scan policy utilized by this object.

Example request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=SCANLOG&WAS=1

Example response:

CODE

<RESPONSE>
   <SCANLOGLIST>
      <SCANLOG>
         <XID>1821159</XID>
         <VCHOST>1744737</VCHOST>
         <XIPXID>-1</XIPXID>
         <DSCANSTARTDATE>2011-01-26 14:16</DSCANSTARTDATE>
         <DSCANENDDATE>2011-01-26 14:47</DSCANENDDATE>
         <ITYPE>20</ITYPE>
         <XTEMPLATE>-10</XTEMPLATE>
         <SCANNERID>0</SCANNERID>
         <XSOXID>1744737</XSOXID>
         <SCHEDULEJOB>Was</SCHEDULEJOB>
         <DISCOVERYTEMPLATE/>
         <TARGET>Was</TARGET>
         <XSCANJOBXID>1821159</XSCANJOBXID>
         <SCANNERNAME>Local</SCANNERNAME>
         <CONFIRMED>0</CONFIRMED>
         <COMPLIANT>0</COMPLIANT>
         <FROMHIAB>0</FROMHIAB>
         <SCANTIME>00:31:00</SCANTIME>
         <SUBMITTED>0</SUBMITTED>
         <LAST>0</LAST>
         <CANUPDATE>0</CANUPDATE>
         <SCANLESS>0</SCANLESS>
         <LATESTSCANUPDATE>2011-01-26 14:16</LATESTSCANUPDATE>
         <HASWASSTATS>0</HASWASSTATS>
      </SCANLOG>
   </SCANLOGLIST>
</RESPONSE>

Response keys
CANUPDATE	Boolean flag if this entry can be updated using the SLS feature.
COMPLIANT	Boolean flag which shows if the target where compliant according to the PCI guidelines in case the scan refers to such a target.
CONFIRMED	Boolean flag if this target is confirmed within the PCI section.
DISCOVERYTEMPLATE	Name of the discovery job if it's a discovery
DSCANENDDATE	The date and time when the scan ended.
DSCANSTARTDATE	The date and time when the scan started.
FROMHIAB	Boolean flag which is set to 1 if the scan originated from a HIAB (only viable on OUTSCAN).
HASWASSTATS	Boolean flag if the target has web application scanning statistics.
IID	Internal use only.
ITYPE	The type of this entry, see Appendix C.
LAST	Boolean value if this is the latest entry for this target.
LATESTSCANUPDATE	Date and time when this scan where last updated using the SLS technology.
LIMITED	The presence of this field indicates that the response has been limited by the use of the "limit" parameter in the request.
SCANLESS	Boolean value if this is an SLS update of the report.
SCANNERID	The scanner id which this target will be tested from.
SCANNERNAME	The name of the scanner where this action takes place.
SCANTIME	The total amount of time the scan took.
SCHEDULEJOB	The name of the schedule job which is associated with this entry.
SUBMITTED	Boolean flag if this target is a PCI target and that the report hasn't been submitted yet in this quarter.
TARGET	The target that this entry is about.
TEMPLATE	The scan policy utilized by this object (Please note that this field may not be present).
VCHOST	The IP or host name of the target which where tested.
XID	The unique identifier of the given object.
XIPXID	The unique identifier of the target object.
XSCANJOBXID	The unique identifier of the scan job log object which contain all individual targets (entry with scan type set in the 20 range).
XSOXID	The unique identifier of the schedule object which contain the schedule preferences.
XTEMPLATE	The unique identifier of the scan policy utilized by this object.

Appendix

In the following appendix we will provide information about additional features that are available through the use of the API. We will also provide look up thables of the meaning of the different field which are ised within the systemon different reqeusts.

Appendix A - Generic Request Response

When you are performing requests you will be presented with a generic status message when you are updating or removing an object. This looks like the following:

CODE

<RESPONSE>
   <SUCCESS>true</SUCCESS>
   <MESSAGE/>
</RESPONSE>

The above response will also contain a reference to a DTD. The supplied DTD is NOT valid for the response and should be disregarded when parsing the response. Please set the code to avoid DTD validation.

Note

All responses from the XML API are wrapped in a RESPONSE tag

Appendix B - Schedule Frequency Table

The frequency table is used when you define different scheduled task like for instance scheduled report, scans, or back up tasks.

Schedule code	Frequency
1	Weekly
2	Monthly
3	Quarterly
4	Fortnightly
5	Daily
6	Bimonthly
10	Once

Appendix C - Scan Status Table

The scan status which is represented by a number is mapped to a type and action. Below you can see what the different codes stands for.

Scan status code	Description
-1	Not scanned
0	Completed (Scheduled)
1	Completed (Forced)
2	Timeout
3	Stopped
4	Stopped (By user)
5	Large report
6	Stopped (Large report)
7	Failed
8	Scan window paused
9	Scan window resume

11	Discovery - Scan running
12	Discovery - Done
13	Discovery -Time out
14	Discovery -Stopped

18	Schedule job not started
19	Schedule job currently running
20	Schedule job done
22	Schedule job failed

30	HIAB update
31	HIAB script update
32	HIAB backup
33	HIAB import
34	HIAB synchronize

Appendix D - Error Codes

If a request fails or if you have not performed a correct request any of the following errors may be given in response.

Error #	Message	Extended explanation
100	You are not logged in.	The action you have requested require that you are logged into the system.
101	Access is denied.	You don't have access to perform the requested function.
102	Incorrect login.	You have supplied the wrong credentials.
103	No records where removed.	You tried to remove something from the system but no records where removed during the request.
104	All required fields are not present.	All fields which are required in order to perform the request has not been supplied correctly.
105	The account you are trying to update does not exist.	The account you tried to update does not exist.
106	No targets found to be updated.	The target you tried to update does not exist.
107	The country code is invalid.	The supplied country code is not valid.
108	The mobile number is invalid.	The format of the mobile number is incorrect.
109	Username must be greater then four characters.	The minimum length of the user name id four characters.
110	The username is taken by another user.	The selected user name is not available.
111	Password must be greater then five characters.	Password must contain at least six characters.
112	Too many login attempts. The account is locked.	You have given the wrong password credentials to many times and the account has been locked. In order to gain access again you need to perform a Forgot login.
113	Old password is incorrect.	When you tried to change passwords you supplied the wrong old password.
114	<Not used>
115	To many entries defined. The maximum is:	You are trying to add more than allowed. The error message will state how many entries that are allowed.
116	Unsupported value in field.	The mentioned field contains unsupported values.
117	No test was sent. Failed to find receiver.	This occurs if the user tries to send a test message and we are unable to determine the receiver.
118	Vaildation of input failed.	Something in the request isn't vaild.
119	<Not used>
120	Invalid email address.	The email address isn't valid.
121	Parameter to low:	The mentioned parameter is to low.
122	Parameter to high:	The mentioned parameter is to high.
123	Importing data. Please try again later.	An import is being done, system will be disabled during that period.
124	Logged out due to inactivity.	The account has been logged out due to inactivity.
500	Internal server error.	When handling the request somethin unexpected occured which terminated the request.
998	Database not in UTF-8. Localization disabled. Contact support.	The database is missing a significant patch, please contact support for further assistance.
999	Server is not registered.	The HIAB appliance is not registered to an account on Outpost24, please contact support for further instructions.

Appendix E - Country Codes

A complete and up to date list of supported country codes by the system can be retrieved from the system by performing the following request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=COUNTRYDATA

Example response:

CODE

<COUNTRYLIST>
   <COUNTRY rowid="1">
      <XID>af</XID>
      <VCNAME>Afghanistan</VCNAME>
      <VCAREACODE>93</VCAREACODE>
      <TIMEZONE>Asia/Kabul</TIMEZONE>
   </COUNTRY>
</COUNTRYLIST>

Appendix F - State Codes

A complete and up to date list of supported state codes by the system can be retrieved from the system by performing the following request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=STATEDATA

Example response:

CODE

<STATELIST>
   <STATE rowid="1">
      <XID>AL</XID>
      <VCNAME>ALABAMA</VCNAME>
      <TIMEZONE>US/Central</TIMEZONE>
   </STATE>
</STATELIST>

Appendix G - Scanning Policies

A complete and up to date list of supported scanning policies by the system can be retrieved from the system by performing the following request:

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=TEMPLATEDATA

Example response :

CODE

<TEMPLATELIST>
   <TEMPLATE rowid="1">
      <XID>39</XID>
      <NAME>test</NAME>
      <GLOBAL>0</GLOBAL>
      <ENABLEDFAMILYLIST></ENABLEDFAMILYLIST>
      <DISABLEDFAMILYLIST></DISABLEDFAMILYLIST>
      <ENABLEDSCRIPTLIST></ENABLEDSCRIPTLIST>
      <DISABLEDSCRIPTLIST></DISABLEDSCRIPTLIST>
      <PARTIALLYDISABLEDFAMILYLIST></PARTIALLYDISABLEDFAMILYLIST>
      <UIHINTENABLEDSCRIPTLIST></UIHINTENABLEDSCRIPTLIST>
   </TEMPLATE>
</TEMPLATELIST>

Appendix H - Audit Applications

The audit application will use the following string representations of different parts in the system.

Value	Description
tHiab	HIAB changes
tMonitorHostS	Monitor log
tOutscanFileS	Uploaded files
tPdetectS	Discovery scans
tReportS	Report generation
tReportTextS	Report text modifications
tReport_DisputeS	PCI Disputes
tSavedscanprefS	Scan policies
tScannerS	Distributed scan changes
tScheduleObjectS	Schedules
tSubUserS	Sub account
tUserGroupS	Groups
tUserDataS	Targets
tWorkflowS	Tickets

Appendix I - Report Types

When exporting reports you need to specify which type of report you would like to receive.

Type	Description
0	Summary
2	Executed scripts
3	Detailed
4	Trend summary
5	Trend detailed
7	Group summary
8	Delta report
9	Solution report
10	PCI summary
11	PCI detailed

Appendix J - Risk Table

In the reporting section the risk value is mapped to the following risk level.

Risk	Description
0	Information
1	Low risk
2	Medium risk
4	High risk

Appendix K - Additional Features

In all requests which will produce some sort of list you can supply additional parameters in order to filter out and sort the results in different manners.

Limit

If no limit is defined it will use a default limit which is set by the system ( often 50 ) but it depends on which request you are doing. If you would like to disable the limit you should set it to -1.

Example :

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=NOACTION&limit=20

Sort

You can define a field that you would like to sort upon from the response. You can also select which direction with the use of the dir parameter.

Example :

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=NOACTION&sort=NAME&dir=ASC

GroupBy

You can also group the findings based on a field from the results with the use of the groupBy parameter.

Example :

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=NOACTION&groupBy=NAME

Filter

You can create multiple filters if that is required but you need to number then with the start from 0.

First you need to define which field this is about and you do that with the use of the following parameter : filter[counter][field].

Then you need to define which comparison you would like it to perform in the filter, the supported ones are eq, lt, gt, and not. The parameter is called filter[counter][comparison].

Once that is done you need to give it a comparison value which is done with the parameter : filter[counter][value].

Now at last you need to define which type this value is in order to perform the correct comparison and this is done with the parameter : filter[counter][data][type]and the supported types are : date, boolean, list, numeric and string.

Example :

CODE

https://outscan.outpost24.com/opi/XMLAPI?ACTION=NOACTION&filter[0][data][type]=date&filter[0][field]=NAME&filter[0][comparison]=eq&filter[0][value]=Test

Appendix N - Event Type

Whan defining events you need to supply which event you would like to set up. This is a list of the available event types currently present.

Type	Description
0	Finding - Information
1	Finding - Low risk
2	Finding - Medium risk
4	Finding - High risk
5	Scan results ready
6	Large report detected
7	Scan started
8	Scan timeout
9	Scan stopped
10	Scan failed
11	Network monitor - Open port
12	Network monitor - Closed port
13	Network monitor - Answer on ping
14	Network monitor - No answer on ping
15	HIAB update
16	HIAB boot
18	HIAB backup
19	System restarted
20	Discovery - Notification
21	Discovery - Alive host
22	Discovery - Dead host
23	Discovery - Host added to system
24	Target added to system
25	Target removed from system
26	Scan notification
30	User login notification
31	Scanner missing
32	Maintenance plan completed
33	Update failed
34	Verify done
35	Scan - Not reachable
36	Scan - Updated
37	Backup failed
38	Release notes
39	Scan: Could not start SLS
40	Scan: Schedule started

Appendix M - Solutiontype

When fetching data from reporting tools, more precisely the solution category, the UI has a string as the category title while the XMLAPI uses a number for the attribute SOLUTIONTYPE.

Type	Description
0	^Unspecified
1	^Unknown
2	^{Reconfigure (software)}
3	^Workaround
4	^{InProgress (solution is being investigated)}
5	^{Contact vendor}
6	^{Update (software)}
7	^{Patch (software)}
8	^{Unack (Unacknowledged solution by vendor)}
9	^{NoSol (No known solution)}
10	^{Account (change account settings)}
11	^{Disable (the service)}
11	^{Filter (access)}
13	^Malware

_Copyright

_{© 2025 Outpost24® All rights reserved.}_{This document may only be redistributed unedited and unaltered. This document may be cited and referenced only if clearly crediting Outpost24® and this document as the source. Any other reproduction and redistribution in print or electronically is strictly prohibited without explicit permission.}

_Trademark

_{Outpost24® and OUTSCAN™ are trademarks of Outpost24® and its affiliated companies. All other brand names, product names or trademarks belong to their respective owners.}
