Extend HIAB Disk Space on Azure

Purpose

This article describes how to extend the disk of a running HIAB on Azure.

Introduction

This article provides a comprehensive guide on how to extend the disk of a running HIAB on Azure. It details the necessary steps, including shutting down the virtual machine (VM), modifying the disk size, and restarting the VM. The process starts with shutting down the HIAB VM via the Serial Console, confirming the shutdown, and ensuring that the VM status reflects "Stopped." After that, users can access the Disks menu to adjust the disk size as needed and save the changes. Finally, the HIAB VM can be restarted, returning its status to "Running."

Shutdown HIAB Virtual Machine

To update the disk size of your HIAB virtual machine, you need to access the Azure portal.

Follow the below procedure to shut down the HIAB virtual machine.

1. Open the HIAB virtual machine, and go to Serial Console menu.

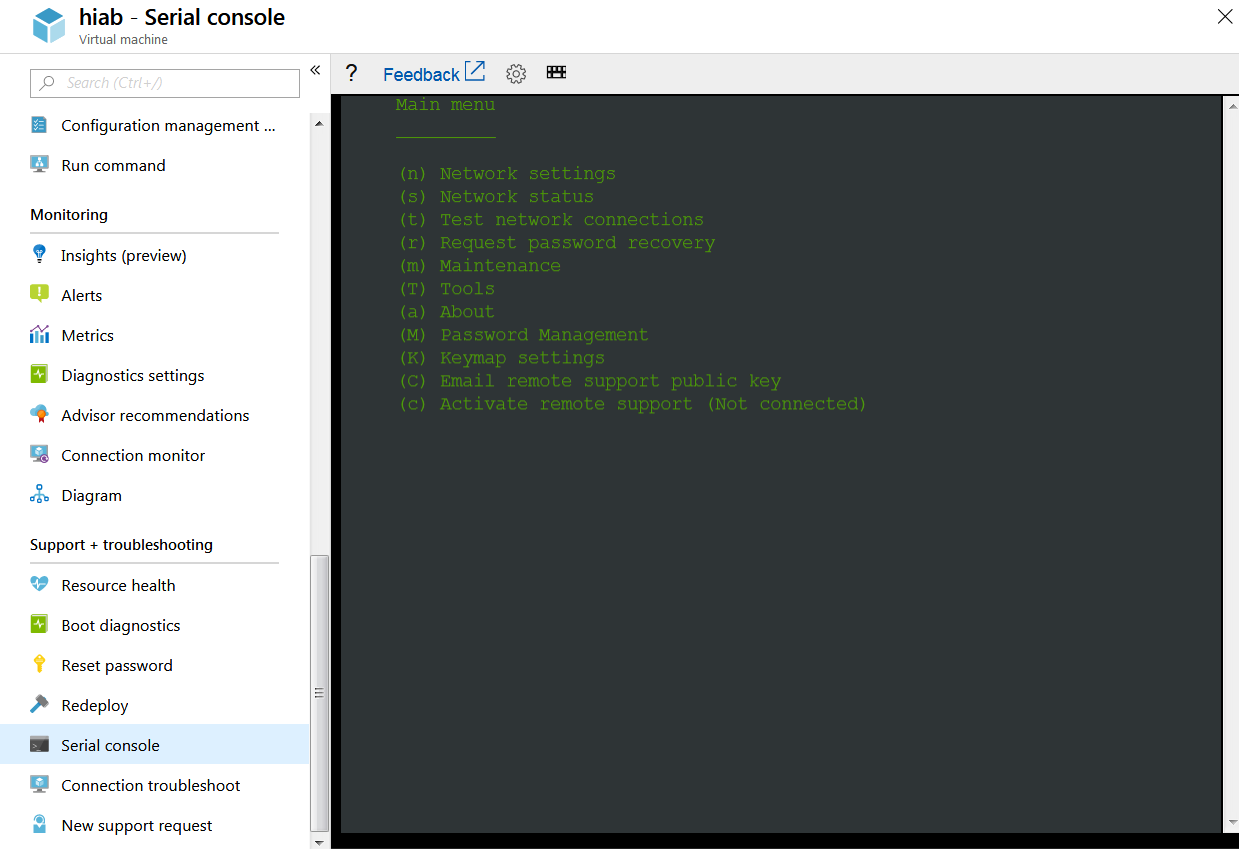

2. Type m to view the Maintenance options.

3. Type s to shut down the virtual machine.

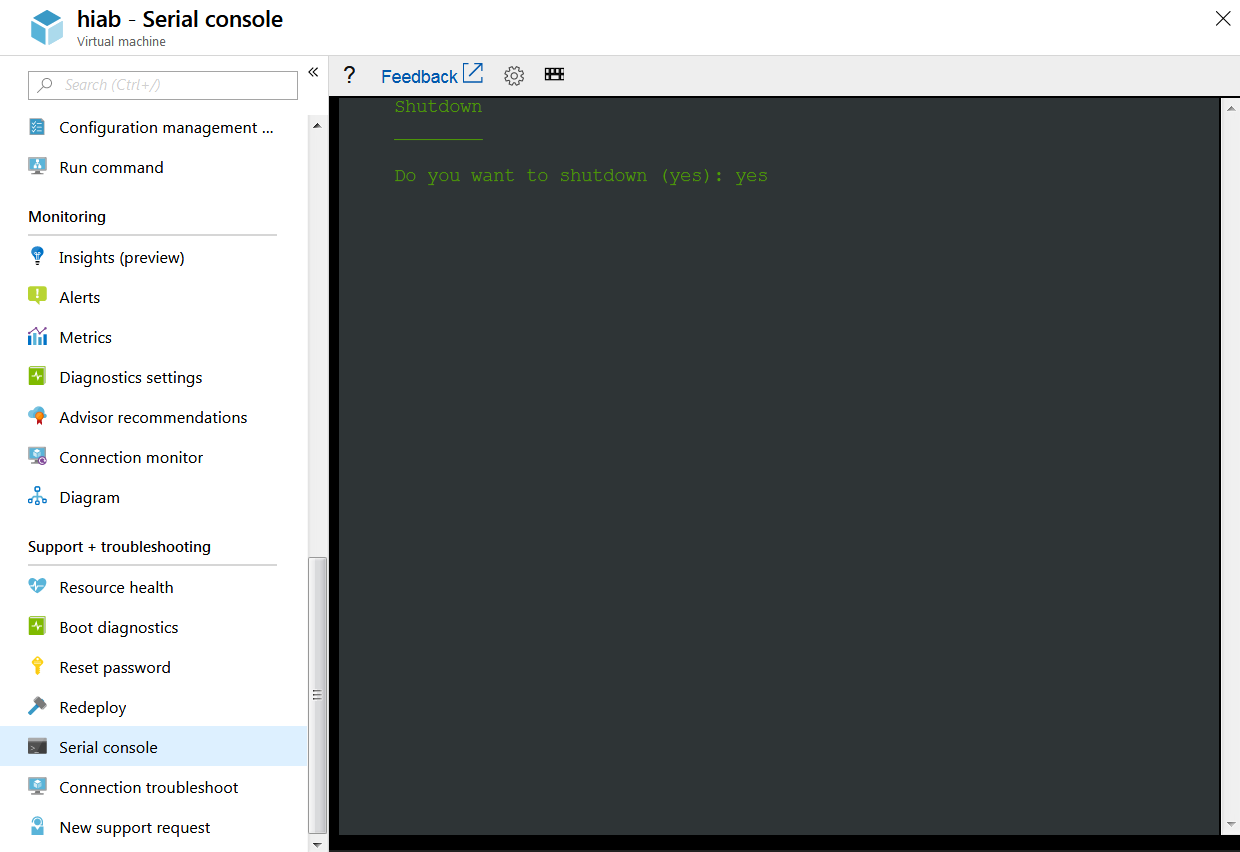

4. Type yes and press enter to confirm.

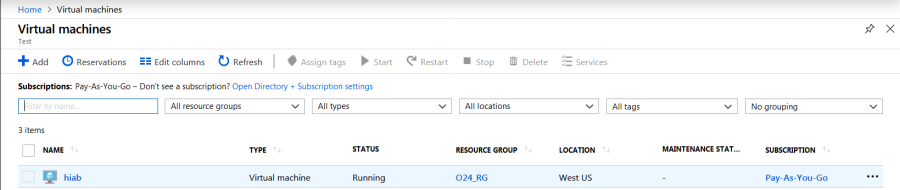

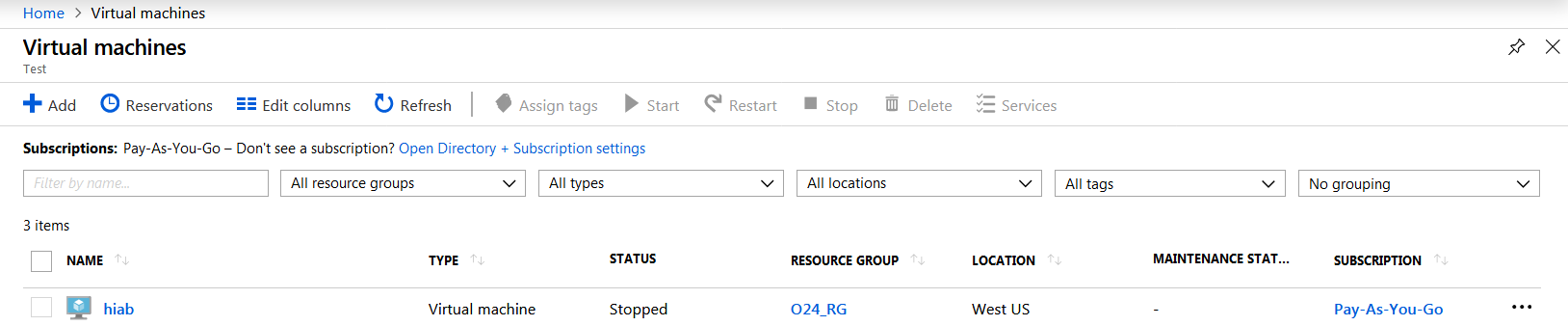

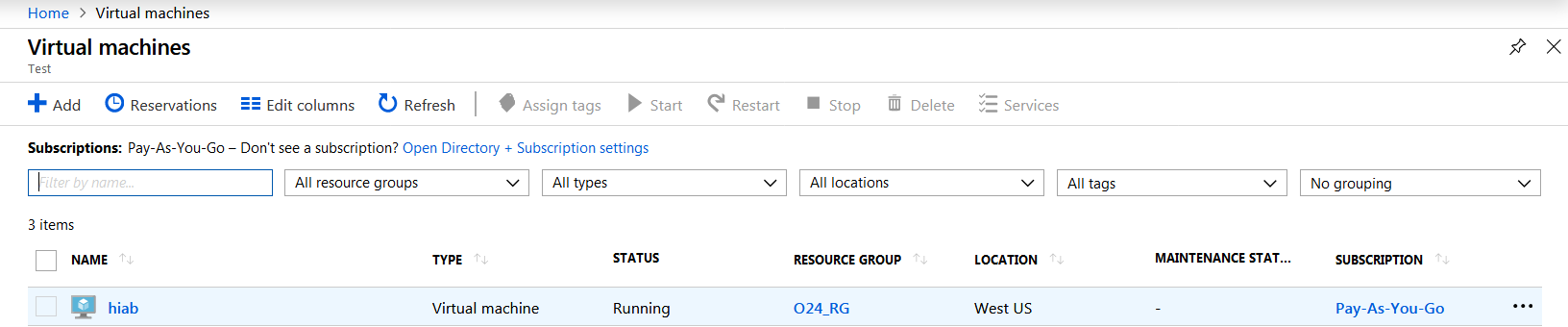

5. Once the HIAB is shutdown, the virtual machine's status moves from Running to Stopped in your Virtual machines inventory.









6. Click on Stop to detach the resources and then be able to access the disk and change its size.

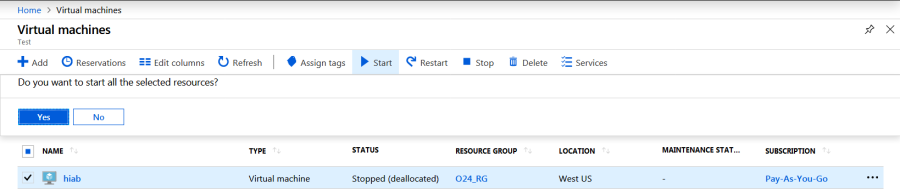

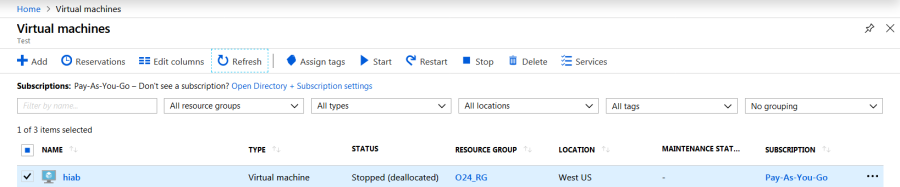

   The status of HIAB is updated to Stopped (deallocated).









7. You can now proceed with the following step and access the HIAB disk.

Extend HIAB Disk Space

To extend the disk of the HIAB virtual machine, open the HIAB virtual machine.

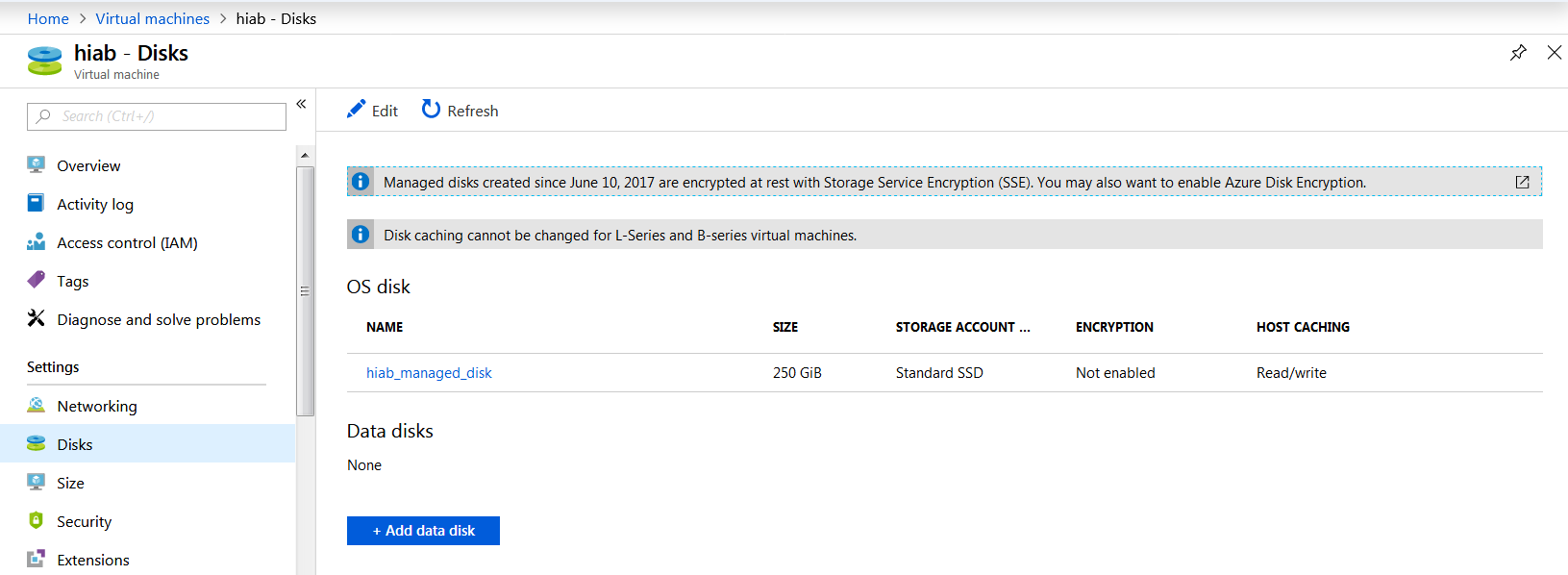

1. Go to the Disks menu.

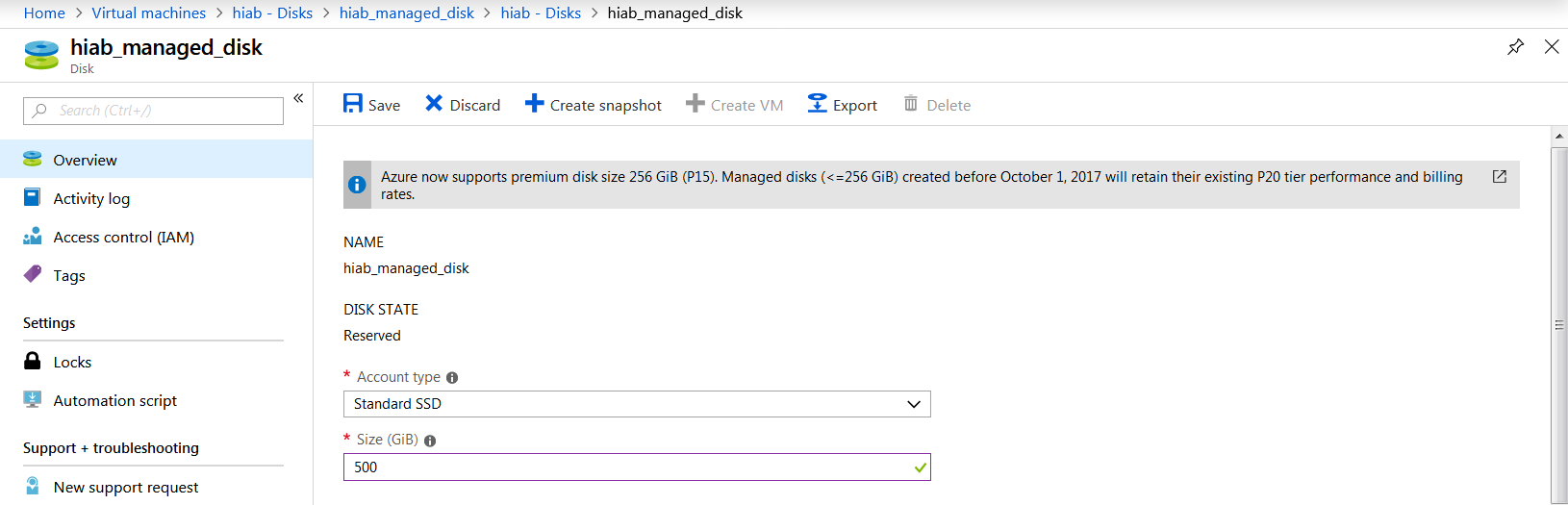

2. Click on the HIAB managed disk to open a panel where you can extend the disk size as per your requirement.









3. Click Save to apply the changes.

Start HIAB Virtual Machine

Follow the below procedure to start the HIAB virtual machine.

1. Open Virtual machines menu.

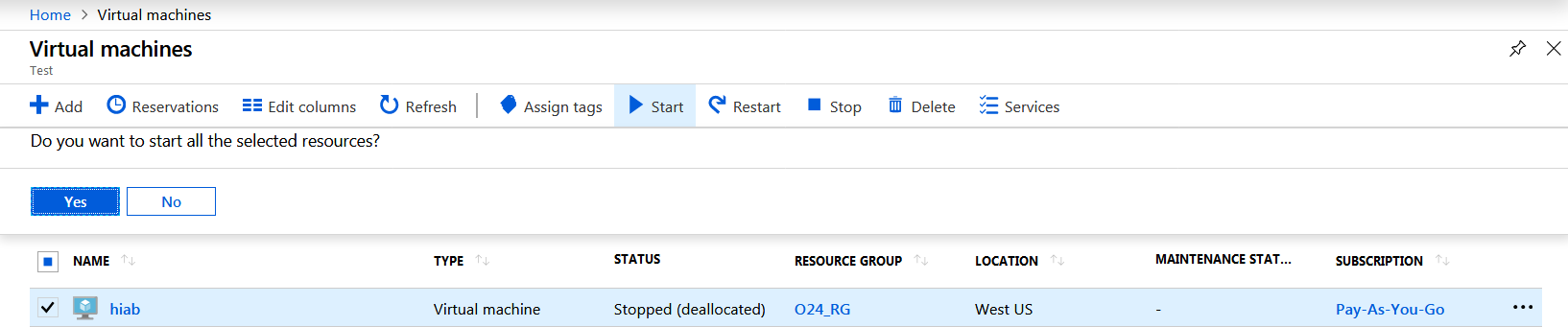

2. Select the HIAB virtual machine and press the Start button.









3. The status of the HIAB virtual machine is changed to Running.






   Caution

   The IP address can change if you are using a public IP address or an IP address set by DHCP. It is therefore recommended to set a static IP address.
